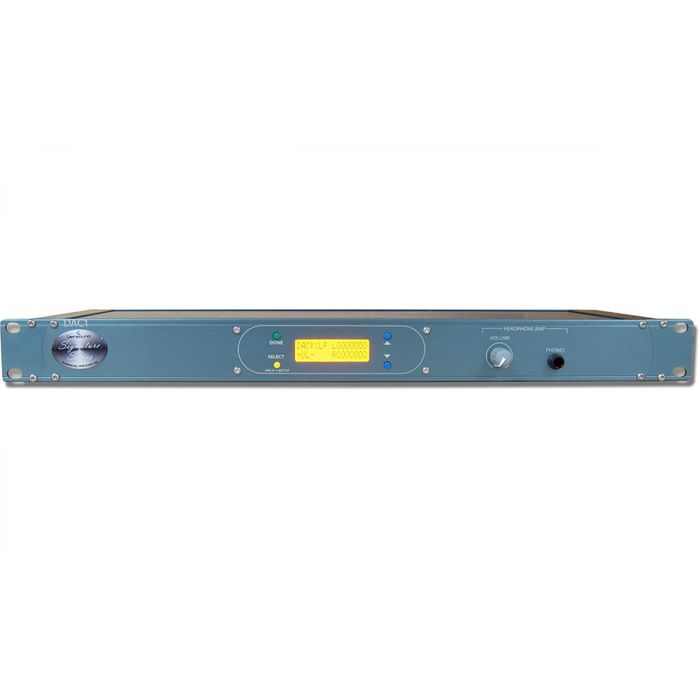

Glensound DAC 1 Stereo Digital To Analogue Converter
Description
The Signature DAC 1 is a broadcast specification, stereo digital to analogue audio converter.
The digital inputs are available separately in three formats:
- 3 pin XLR using AES
- RCA phono plug using S/PDIF
- optical connectors using TOSLINK
The analogue outputs are available separately in two formats:
- balanced XLR connections
- unbalanced RCA phono connections
The front panel features a 6.35mm stereo jack socket for headphones monitoring, with a full size pot to adjust the volume level.
A front panel screen shows current operation mode and allows configuration of all unit parameters.
Power is provided by an internal switch mode power supply, with a wide input range.
There is also an input for external 12V DC power. The 12V DC input can be connected to the optional Signature PS1 external DC Master Power Station, for situations where a redundant power supply is desirable.
Features:
- Modern high quality Digital to Analogue audio converter
- Analogue output on 2 x 3 pin XLR plugs
- Analogue output also available on 2 x RCA phono sockets
- Digital input available on 1 x AES on 3 pin XLR socke
- Digital input also available on 1 x S/PDIF on a phono socket
- Digital input also available on optical TOSLINK
- Front panel headphone connection for monitoring
- Front panel display for easy setup
- Mains powered and external DC
- Sample frequency up to 192k
