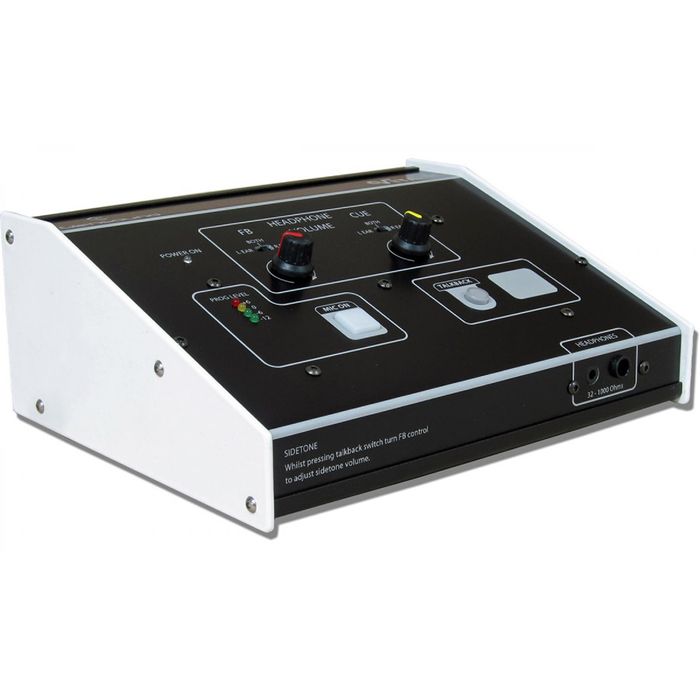

Glensound VITA PLUS Commentary Unit With Talkback & Dante
Description
The VITA PLUS is a very powerful Dante network audio interface, in a traditional desktop style. It has a mic/line input and headphone monitoring connection for a single user, and contains two 4 wire circuits. One of these is typically used as an on air channel, and the other as a talkback channel.
The high quality microphone input, with the Glensound Referee compressor, makes the Vita Plus suitable for on air commentary use, perfect for a small OB or in an off-tube booth .
The flexibility of the talk button configurations, means that the Vita Plus can also be used as a talkback unit as part of a Dante network.
The Vita Plus can connect to any Dante network, or to other audio equipment via Glensound’s own Dante interface units.
Two Four Wire Circuits
The VITA PLUS has two 4 wire circuits. These are typically used as main programme on air, with a separate talkback circuit. The push buttons for each circuit are configurable and can operate in different modes, to allow configuration for different types of uses:
- Latching on/off
- Momentary push to talk (PTT)
-Intelligent mode where a short tap is latching, but a longer hold becomes momentary
- Always on and mutes when pressed (cough)
- Pressing one button, mutes the other circuit (talkback)
Headphone Monitoring
There are 6.35mm and 3.5mm jack sockets for headphone monitoring on both the front & rear of the unit. Each of the two 4 wire inputs can be selected to be in the left ear, right ear, or both ears of the headphones, depending on the users preference. The level of each input can also be independently selected.
The headphone amplifier is intelligent and capable of driving correct levels into low or high impedance headphones and capable of connecting directly to both stereo or mono headphones and earpieces.
The headphone monitor also includes sidetone (at a programmable level) - sidetone is the commentator’s own voice.
Single Input
The Vita Plus is a single user unit, with one high quality input. The input is mic/mic+48v/line switchable, on a 3 pin XLR, with a variable gain control. As the Vita Plus can be used for on air broadcast, Glensound’s Referee compressor limiter is used to control the audio levels and prevent any clipping. The Referee compressor has been developed over many years of working with sports commentators, and provides a gently increasing compression as the input signal approaches clipping. In normal use the compressor is not active as it only starts working as clipping approaches, so normal dynamic range is maintained.
Network Audio Link
The VITA PLUS is Dante network audio compatible. The network connection is via a single Neutrik XLR RJ45. This link carries:
- 2 audio inputs
- 2 audio outputs
- Power over Ethernet (PoE)
Features:
- Complete commentary functionality and 4W in a desktop format
- Dante AoIP network
- Input is switchable from line, mic, or mic + 48v phantom power
- Low noise, high headroom mic amplifier
- 48K 24bit A/D converter
- Headphone output on 6.35mm jack socket
- Two outputs: one for main programme audio, one for talk back circuit, are both on the single RJ45/CAT5 network audio connection
- Independently configurable buttons for both outputs using Config+: latching, momentary or lazy
- Two inputs for headphone monitoring from network audio connection, both with adjustable level
- Headphone inputs have left/both/right switching
- Glensound intelligent headphone amp provides correct output levels into low or high impedance headphones and can also correctly drive mono earpieces with mono jack plugs.
- Powered via PoE, or internal switch mode PSU
Vita Controller: The sophisticated modern looking Windows 10 App allows full remote control of all the features of the Vita Plus.
