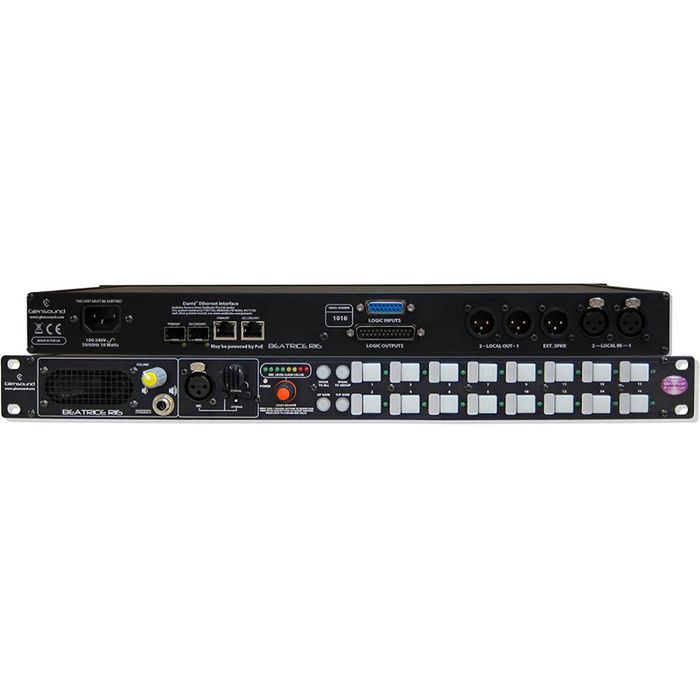

Glensound BEATRICE R16 16 Channel Network Rack Intercom
Description
The Glensound BEATRICE R16 is a versatile and fully featured 16 channel rackmount intercom with crystal clear audio designed for broadcast, theatre and professional audio applications.
It is part of our Beatrice intercom system that utilises the reliable and proven Dante network audio transmission protocol to allow real time distribution of uncompressed audio across standard networks. It is also AES67 compliant. As such the BEATRICE R16 is fully compatible with other manufacturers’ equipment using the Dante and/ or AES67 protocols.
This 1RU rackmount intercom was designed to be very easy to use for the operator and simple to set up for the technician. It includes all the basic functionality required for small intercom systems and none of the overly complex installation requirements normally associated with large systems.
16 Channels Of Intercom
One single user connected to the unit can listen to and communicate with 16 separate locations on the network. Depending upon how the Dante network has been routed, the incoming audio circuits and outgoing circuits can be different locations.
Configurable Speak Switches
Each channel's speak switch can be user defined to operate to your preference. The options are: Momentary, Latching or Intelligent Lever Key.
Dante® Routing & Partyline
Audio routing to/ from other devices is setup using Dante controller which allows for point to multipoint routing on outgoing circuits (but only 1 single incoming circuit for each of the 16 channels). Therefore we’ve included an inbuilt fixed ratio 11 input 11 output mixer matrix with inputs and outputs connected directly to the Dante / AES67 network which allows for setting up partyline and group circuits.
Onboard Mic & External Mic Input
A good quality, clear sounding microphone amplifier, designed for communication purposes, is fitted which also has the benefit of a compressor/ limiter circuit to help keep levels and intelligibility consistent even when the operator gets overly excited. This microphone amp has two microphone sources, either the inbuilt front panel mounted electret capsule which provides good voice intelligibility from normal working distances, or a balanced XLR input for connecting external gooseneck microphones. Twelve Volt Phantom power is also available and can be turned on/ off as required via an internal link.
High Output Intelligible Loudspeaker
What’s the point of an intercom unit if the onboard speaker is so cheap that you can’t understand what is being said to you? We tried hundreds of different drive units before settling on the one used in the Beatrice R16. We chose it because it had a much cleaner sound and better frequency response for vocals than any other speaker on the market that would fit in a 1RU subrack.
Mains or PoE Powered
An inbuilt wide range switch mode mains power supply is fitted for powering the Beatrice R16. It is terminated with a standard IEC plug, making it easy to plug in wherever you are in the World.
The unit can also be powered via the Ethernet cable by standard PoE (Power over Ethernet) on either of the copper Ethernet ports. The PoE power can be supplied by an external PoE switch or a midspan power injector.
Redundant Twin Copper & Twin Fibre Ethernet Interface
When ultra reliable communications is needed for the utmost important jobs, glitch free redundant network circuits can be set up using the primary and secondary Dante network ports.
There are 2 copper Ethernet ports on RJ45s and also 2 fibre Ethernet ports presented as SFP slots (SFP modules not included). Redundant networks can be set up across any of these ports. These ports can also be set up as a network switch.
View the PDF for more features and specifications:
