Sonnet Allegro Pro 8-Port USB-C PCIe Card
Description
Pro Ports. Max Performance from Each One – First pro PCIe adapter card with eight external USB-C ports, four USB 3.2 controllers, and an x8 PCIe 3.0 bridge chip.

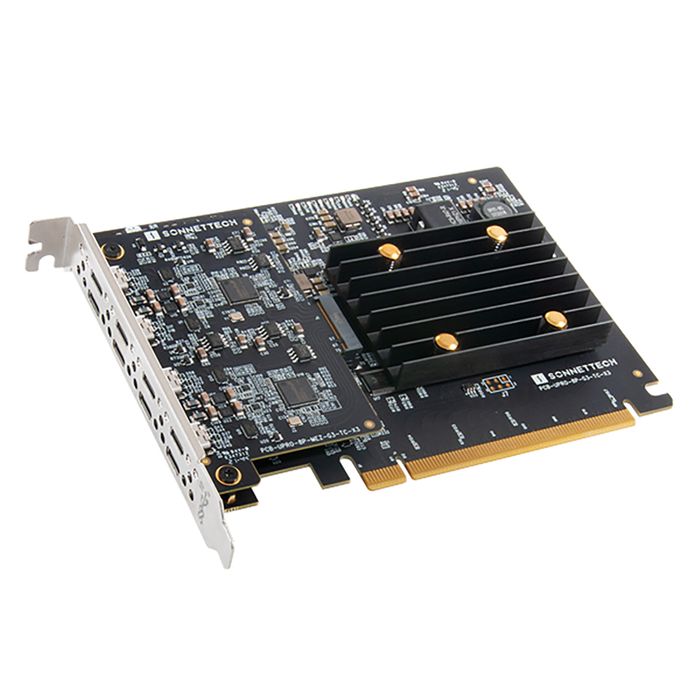

Even in computers with multiple expansion card slots, every slot is valuable—there may not be space to install two 4-port adapter cards. Sonnet’s Allegro™ Pro USB-C® 8-Port PCIe Card is the first adapter card ever to feature eight high performance USB-C ports, fitting them neatly on a standard full-height PCIe card bracket. Ports are spaced to enable connection of eight cables (and even USB-C male to USB-A female adapters).
Why Sonnet? Many multi-port USB cards split a single USB controller’s bandwidth among their ports, limiting performance when two or more devices are connected and operating. When installed in a computer's PCIe 3.0 or 4.0 slot, Sonnet’s card provides full 10Gbps bandwidth to every one of its eight ports, ensuring maximum performance from each one.
The Most Capable 10Gbps USB Card – USB SSD Nirvana
Equipped with NVMe SSDs, the fastest USB 3.2 Gen 2 drives available can transfer data at incredible speeds. Chances are your computer has few ports capable of supporting their full performance. Upgrade your workflow in a major way by installing Sonnet’s Allegro Pro USB-C 8-Port PCIe Card in your Mac Pro®, Windows, or Linux computer; or Echo™ III Thunderbolt™ to PCIe card expansion system to support up to eight NVMe USB drives at maximum performance*, no power adapters needed.
High Speed Simultaneous Transfers – 10Gbps from Every Port!
Many multi-port USB cards are simple hubs that split a single USB controller’s bandwidth between all its ports, which limits their performance when two or more devices are connected and operating. When installed in a computer's PCIe 3.0 or 4.0 slot, the Allegro Pro USB-C 8-Port PCIe Card supports eight simultaneous 10Gbps transfers. It is ideal for transferring data from multiple drives to the computer (and from drive to drive)—data transfers from a single USB 3.2 NVMe SSD device at up to 1000 MB/s. Compared to using a USB 3.1 Gen 1 or USB 3.0 adapter card, transfers complete in half the time!
Virtually Independent – Supports Four Independent Physical Connections to Virtual Machines (VMs)
The Allegro Pro USB-C 8-Port PCIe Card’s four independent USB 3.2 controllers control a pair of ports each. If your VM software supports direct physical connections, then each of these four controllers can be independently attached to a separate virtual machine.
Key Features:
- Eight 10Gbps USB-C Ports On a Single Card
- Supports Eight USB-C Cables
- Four Independent USB Controllers, Full 10Gbps Bandwidth Per Port – Features Four USB 3.2 controllers and an x8 PCIe Bridge Chip that Enables Each Port to Support Data Transfers at Up to 1000 MB/s, Even While Transferring Files From Multiple Drives Concurrently
- Advanced Data Traffic Management
- Powered Ports
- Protected Power Delivery
- Supports Four Independent Physical Connections to Virtual Machines (VMs)
- Supports Hot-Swappable Device Connections
- Broad USB Device Support and Compatibility
- Easy Installation
- Great for Use in Thunderbolt Expansion Systems
- Mac, Windows, and Linux Compatible
- 2-year Product Warranty
- Free Lifetime Customer Technical Support
- Designed in the USA
