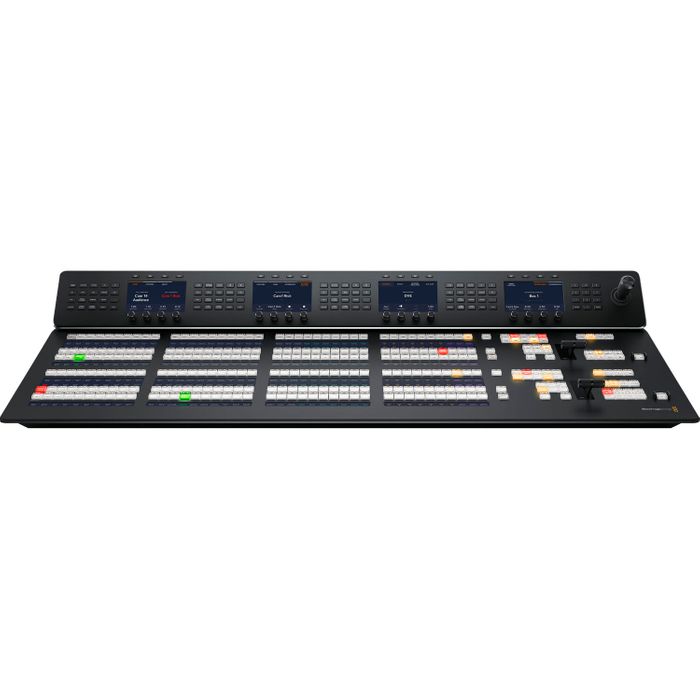

Blackmagic ATEM 2 M/E Advanced Panel 40
Description
The ATEM 2 M/E Advanced Panel 40 is a sophisticated control interface for the separately available ATEM Constellation Switcher from Blackmagic Design. This massive model is big enough to perfectly match the features on the ATEM Constellation switcher! It features 4 M/E rows with 40 input buttons per row and 4 independent system control LCDs for each row plus 24 LCD's for custom labeling of every button on every row!
Although you can use ATEM Constellation with the software control panel, using an ATEM Advanced Panel is so much faster! The ATEM Advanced Panels opens up the power of your ATEM Constellation because it gives you an enormous amount of control, allowing you to setup more complex effects. It's also a nicer way to work because you have physical broadcast quality buttons, knobs and a t-bar fader so you can access all features in the switcher, all at the same time. Imagine using the 4 M/E model to access all M/Es simultaneously, with an input button for every single SDI source on the ATEM Constellation switcher!
Applications:
Designed for complex live productions, the ATEM 2 M/E Advanced Panel 40 enables you to customize, monitor, and switch your live broadcast events with features such as camera switching, executing transitions, fades, DVE effects, and 12 on-air indicators. The ATEM 2 M/E Advanced Panel 40 connects to your switcher via 10/100/1000 BaseT Ethernet and incorporates four Ethernet loop outputs for connecting to another panel or to a media-management computer.
Compatibility
Provides pro switching controls for the ATEM Constellation HD line of switchers
Interface
Four 10/100/1000 BASE-T Ethernet ports with loop output for linking to additional control panels or computers
USB Type-C for firmware updates
Cross-Points
Tricolor LED cross-point buttons; 40 direct cross points, and 80 shifted cross-points
Mix Effect Rows
Two M/E rows, 40 input buttons per row
LCD Menu Displays
Four system control LCDs for each row with custom labeling for all rows and input buttons
Controls
One 3-axis joystick, one numeric keypad, and two fader bars
On-Air Indicators
12 indicators let you easily see which feeds are on air
DSK Selectors
Four transition previews with auto, cut, and tie/preview options
Key Features:
- Panel for ATEM Constellation Switcher
- 2 x M/E Rows, 40 x Input Buttons Each
- 4 x System Control LCDs for Each Row
- High-Quality Buttons/Knobs/Controls
- 4 x GbE Ethernet Ports with Loopouts
- Custom Labeling, Redundant Power Supply
- 12 On-Air Indicators, 40 Cross-Points
- 3-Axis Joystick, Keypad, 2 x Fader Bars
- USB Type-C Input for Firmware Updates
