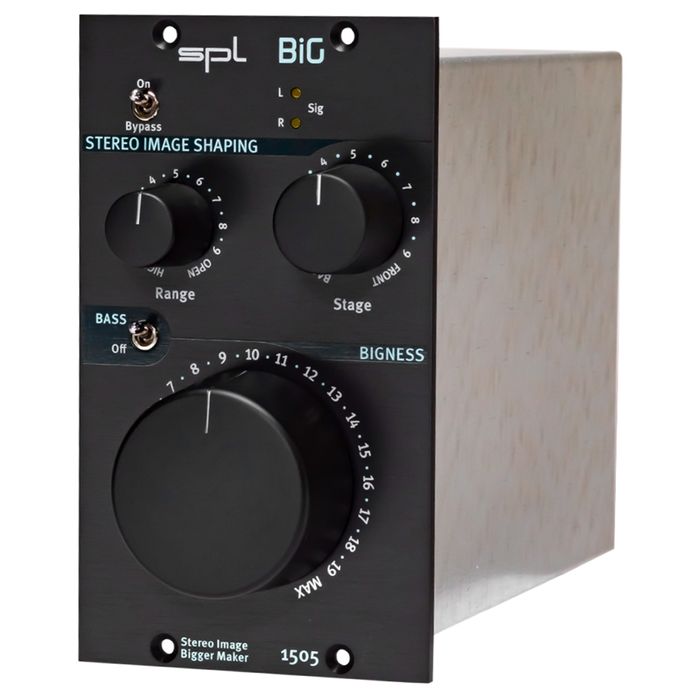

SPL BiG - Stereo Image Bigger Maker (500 series)
Description
500 series double-slot module for stereo stage processing.
BiG enlarges the stereo image in a new manner and opens up new creative ways of sound shaping. Intuitive with just three controls.
On/Bypass:
The On/Bypass switch activates (On) or deactivates (Bypass) the module. This allows you to quickly switch between processed and unprocessed signal.
Signal LEDs:
The signal LEDs (Sig) indicate whether an audio signal is present at the input of the respective channel. (With a level higher than -20 dBu)
Range:
With the Range control, the frequency Range which should be processed can be selected.
Stage:
With the Stage control, the frequency range previously selected with the Range control can be moved backwards or forwards on the stereo stage.
BIGNESS:
The huge BIGNESS control adjusts the intensity of the STEREO IMAGE SHAPING.
BASS:
The BASS/Off switch can be used to activate (BASS) or deactivate (Off) an additional bass boost following the BIGNESS section. The bass boost is performed by a passive filter implemented in a similar circuit to the one used in the AirBass function of the SPL IRON Mastering Compressor.
Specifications:
- Input & Output: balanced
- Maximum input & output gain: 21 dBu
- Input impedance: 20 kO
- Output impedance: 150 O
- Common mode rejection: > 82 dB
- Frequency range (-3 dB): 10 Hz – 100kHz
- THD & N (0 dBu, 10 Hz – 22 kHz): 0.03 %
- Noise (A-weighted): -92.3 dBu
- Dynamic range: 113 dB
