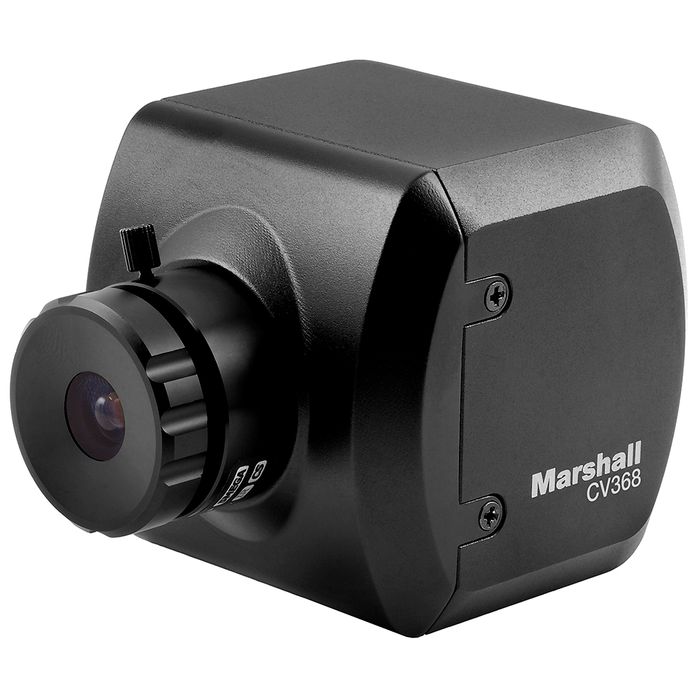

Marshall CV368 Compact Global Shutter Camera - CS w Genlock
Description
Compact HD Camera with Global Shutter and Genlock Sync features. Built around an impressive 1/1.8" Sony global sensor with 25% larger pixels and flexible CS lens mount (lens sold separately) make this the most capable POV camera in the compact camera lineup.
New Global Shutter CMOS Technology:
Global Shutter camera sensors are nothing new to the broadcast proAV industry, however when users are challenged to capture ultra-fast motion within the field-of-view, motion anomalies become more of a challenge - Sony Global Shutter sensors perform better in these conditions as all pixels are exposed (start to finish) simultaneously.
Genlock Tri-Level Sync Feature:
Tri-level sync allows multiple cameras to be plugged into HD workflows already in sync (genlock) which allows for seamless transitions between cameras with minimal amount of delay. Tri-level runs at higher frequency which makes the HD60 signal sync more accurate and more seamless.
25% Larger Pixel Size:
Larger physical pixel sizes allow for greater accuracy of color and clarity even in low-light applications. The CV368 utilizes a Sony Exmor 1/1.8" sensor with larger physical pixels to deliver step-up broadcast quality images from a compact camera size.
Durable, Flexible, Powerful:
Marshall Compact Cameras are cut from individual aluminum alloy blocks, designed with rear I/O connector protection, solid 1/4"-20 mount type, and flexible interchangeable lenses. Ability to remotely adjust and match a POV camera from a control room that is installed hundreds or thousands of feet away is a powerful tool and comes standard with every Marshall Camera.
Applications:
Broadcast, Production, Sports, Racing, Newscast, Weathercast, Live Events, Aerospace, House of Worship, Courtroom, Government, Education, eSports, Nature, Live Concert, Podcast, Studio, Stage, Science and Technology
Features:
- Large 1/1.8" Global Shutter Sensor
- 3.2 Megapixels with 25% larger pixel size
- Simultaneous 3GSDI & HDMI outputs
- Flexible CS/C Lens Mount (lens sold separately)
- Tri-Level Sync (Genlock) for faster, more accurate camera switching
- SMPTE 424M (2.97Gbps) - 3GSDI:
- 1920x1080p @ 50, 59.94, 60fps
- SMPTE 292M (1.485Gbps) - HDSDI:
- 1920x1080p @ 23.97, 24, 25, 29.97, 30fps
- 1920x1080i @ 50, 59.94, 60fps
- 1280x720p @ 50, 59.94, 60fps
- Low Light sensitivity (0.05 Lux) with ability to capture IR wavelengths
- Image Mirror/Flip, Digital Zoom, Digital Image Stabilizer
- Microphone/Line Level input with 2.5V Mic bias
- Color Matrix feature: Style, Master Level, Master Phase, Color Level, Color Phase
- Environmental: -10°C ~ 50°C
- 12v power supply, can operate 12V+/-10% with a 6 watt draw
