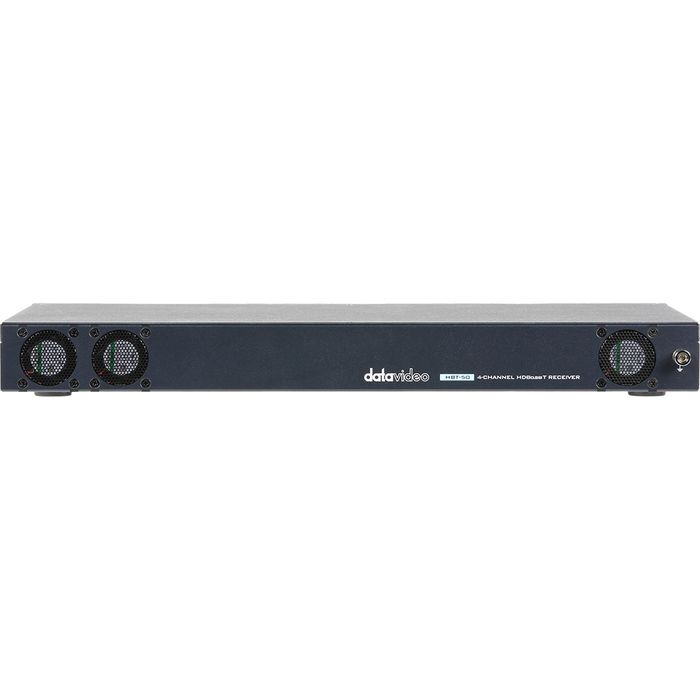

Datavideo HBT-50 4-Channel HDBaseT Receiver SDI + HDMI outs
Description
An essential link to connect all your equipment for your live production
The HBT-50 supplies power, video signal, and camera control up to 4 devices up to 100 meters distance. It simultaneously outputs HDMI, SDI, RS-422 and IP control signals.
Add HDBaseT to your SDI Workflow seamlessly:
HBT-50 can power the PTZ video cameras via PoE, transmit signals over a single ethernet cable to and from the camera and can be used to remotely control various camera parameters such as iris, presets and etc. Most importantly, it can output SDI signal to your switcher.
Integrate camera control, switcher and recorder operations:
HBT-50 simultaneously transmits SDI (up to 1080p60) and HDMI (up to 1080p60) as well as camera control. With the HBT-50, the system can be integrated camera controller, video switcher, and ISO recorder.
Simultaneously outputs HDMI and SDI:
HBT-50 provides outputs HDMI and SDI simultaneously. It is great us on long distance camera video transmitting to switcher, or ISO recorder. These is no need to prepare 4 additional HDBaseT receiver, HBT-50 will get the work done for it.
Perfect solution for your broadcast SDI workflow:
Remote control of camera functions via RS-422 or DVIP with SDI video transmission (up to 1080p50/60) and HDMI video transmission (up to 1080p50/60) up to 4 cameras simultaneously up to 100m.
What is HDBaseT ?
HDBaseT can be used to power and control cameras, as well as transmit video signals over long distances for many video production applications. In this episode of Tech Tip Tuesdays, we explain how you can save time and money by using HDBaseT. HDBaseT allows you to transmit video, control, tally, and power over single CAT 6 cable. This means you no longer need to run multiple cables for video, control, and power for your cameras!
Datavideo offers several HDBaseT PTZ Cameras and HDBaseT Mobile Video Switchers to help you take advantage of the many workflow benefits that HDBaseT technology offers.
View the PDF for full specifications.
