Datavideo TLM-170KR 17.3-inch 4K ScopeView Monitor 7U Rackmount
Description

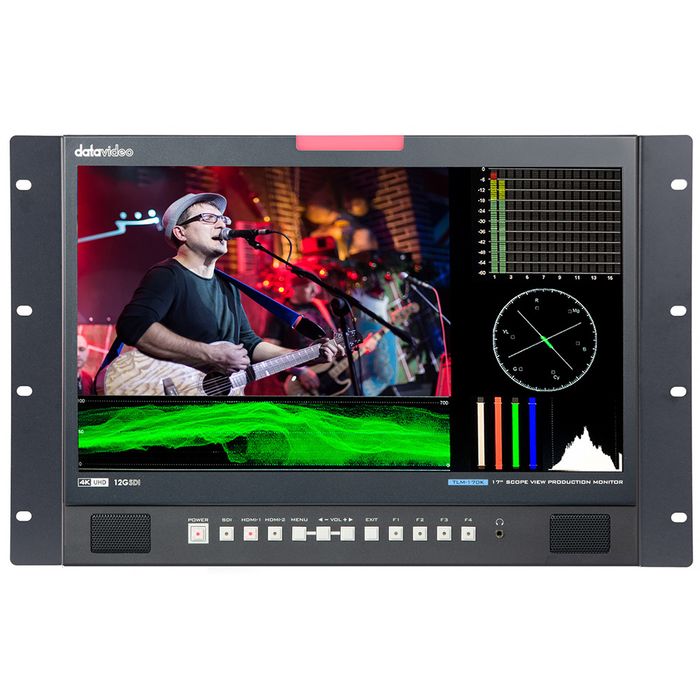

The TLM-170KR is a rack mount 17-inch 4K UHD LCD monitor which comes with an UHD 3840 x 2160px IPS panel. The panel has a 178 degrees wide viewing angle and a brightness of 300 cd/m2 and 1000:1 contrast ratio. The field monitor features the 12G-SDI and HDMI 2.0 inputs with loop-through outputs, supporting up to DCI 4K and Ultra HD signals on both input and output.
The TLM-170K series have a variety of professional and helpful monitoring features, including waveform, vector scope, focus peaking, false color, histogram, peaking, zoom, screen markers, image flip, and more. Moreover, it also supports HDR for HLG and SMPTE 2084, and the presets of color space include Rec 709 and DCI P3. The TLM-170K series are ideal for broadcast and live production applications.
Spectacular 4K Resolution High Brightness and Contrast:
The TLM-170K series Ultra HD 3840 x 2160px IPS panel features high brightness and high contrast panel, and is four times the resolution of the Full HD panel. It also supports DCI P3 color space 4K/60p and UHD 4K/60p video input and output.
Supports Multiple Input and Output Configurations:
1 x 12G-SDI, 2 x HDMI (HDMI 2.0) inputs;
1 x 12G-SDI loop-through, 1 x HDMI (HDMI 2.0) loop-through
Various Built-In Functions:
Support column (YRGB peak), time code, waveform, vector scope, audio vector, focus peaking, zoom, pixel to pixel, exposure, histogram, image flip, camera log, HDR/SDR, and more.
Featues a tally light, ideal for live production.
View the PDF for full specifications.
