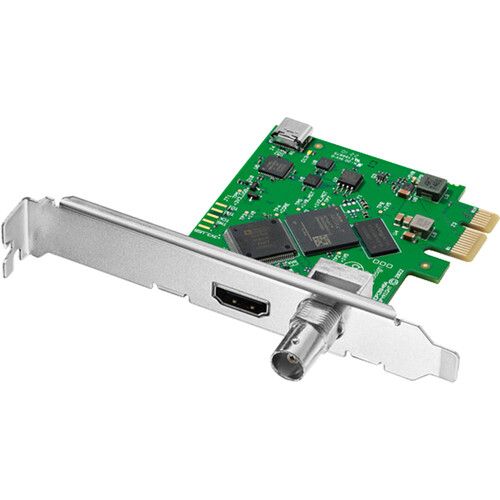

Blackmagic Decklink Mini Monitor HD PCIe
Description
Monitor your computer's video output via SDI or HDMI with the Blackmagic Design DeckLink Mini Monitor HD. This 1-lane PCIe slot playback card with SDI and HDMI outputs, compatible with 1-, 4-, 8-, and 16-lane PCIe slots, providing you with just the playback and monitoring functionality for delivering broadcast-quality video via HDMI or SDI monitors.
The card supports up to DCI 2k formats and is compatible with such software packages as DaVinci Resolve and Final Cut Pro. In addition, the card supports hardware-based real-time color space conversion. The card also automatically switches between SD and HD formats, so it'll handle all common video formats as well as HDR.
PCIe Compatibility
PCIe 1-lane card, compatible with 1-, 4-, 8-, and 16-lane PCIe slots on Mac, Windows, and Linux (for use on a Mac, a Mac Pro is required with PCI Express slots)
Supported Software Applications
- DaVinci Resolve
- Fusion
- Final Cut Pro
- Adobe Premiere Pro CC, Adobe After Effects CC, Adobe Photoshop CC
- Avid Media Composer, Avid Pro Tools
- Steinberg Cubase, Steinberg Nuendo
- The Foundry Nuke
- Sony Catalyst Production Suite
- Tools On Air Just: Play & Live
- Magix Movie Edit Pro Premium
- Corel VideoStudio Pro
- CyberLink Power Director
- Grass Valley Edius
- Softron Mreplay
- Telestream Wirecast
- Livestream Studio
- Resolume Arena
- Vegas Creative Software Vegas Pro
- VidblasterX Studio and Broadcast
- Unimedia Technologies UniplayOne and Uniplay-CG
- CasparCG Server
- Magicsoft CG
- Xsplit Broadcaster
- DevTek Easy Media Suite
- Boinx Software MimoLive
- StudioCoast vMix
- Renewed Vision ProPresenter
- Ventuz Director
- Class X Liveboard and CoralCG
- Open Broadcaster Software Studio
- Nautilus Studio Nemo3D
- Burst Video Webclip2Go
- Derivative TouchDesigner
- Assimilate Scratch and Live Assist
- NewBlue Title Live and Titler Pro
- SGO Mistika
Supported Codecs
- AVC-Intra
- AVCHD
- Canon XF MPEG2
- Digital SLR
- DV-NTSC
- DV-PAL
- DVCPRO50
- DVCPROHD
- DPX
- HDV
- HEVC
- XDCAM EX
- XDCAM HD
- XDCAM HD422
- DNxHR & DNxHD
- AppleProRes 4444
- Apple ProRes 422 HQ
- Apple ProRes 422
- Apple ProRes 422LT
- Apple ProRes 422 Proxy
- Uncompressed 8-bit 4:2:2
- Uncompressed 10-bit 4:2:2
- Uncompressed 10-bit 4:4:4
Hardware Frame Buffer:
v210 (10-bit YUV), 2vuy (8-bit YUV), ARGB, BGRA (8-bit RGB), r210 (10-bit RGB), R12B, R12L (12-bit RGB)
View the PDF for full specifications and features.
