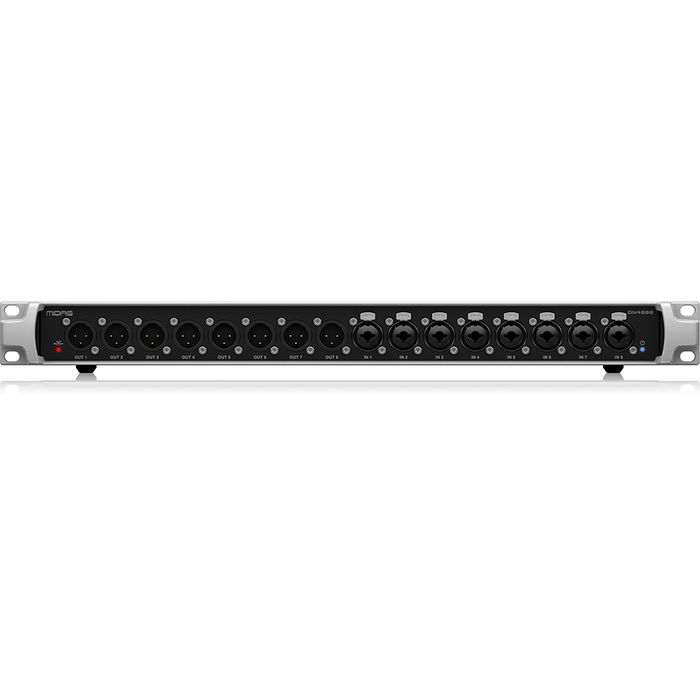

Midas DN4888 Bus-Powered StageConnect Interface 8 in/8 out +
Description
The Midas DN4888 provides a dead-simple solution for piping eight channels of analog I/O over a StageConnect network. This bus-powered interface features eight line-level analog inputs, eight line-level analog outputs, and two Ethernet ports: one to connect to Ultranet receivers, and a second to output the eight onboard analog input channels. Configuring the DN4888 is a piece of cake via a built-in Synchronization switch. You also get an LED that indicates a successful connection to a StageConnect network, plus a power LED and a USB port for firmware updates. Here at Sweetwater, we've used the DN4888 for a whole host of essential applications. If you want to route eight channels of analog I/O audio over a convenient Ethernet cable, the Midas DN4888 is a great way to go.
The StageConnect interface can be connected to other StageConnect devices using a single XLR cable for multi-channel audio transmission. There are various I/O options available providing easily scalable connectivity in your side rack. The devices of the DN48XX Series can be daisy-chained and will negotiate the channels for their respective connectivity automatically.
Features:
- Breakout box with 8 balanced XLR line in and 8 balanced XLR line out for StageConnect systems
- Can be used as analogue I/O box for other StageConnect devices, Turbosound iQ speakers or Behringer WING and Ultranet receivers, such as P16 personal monitoring mixers
- StageConnect 32-channel audio transmission at sub-millisecond latency, 24-Bit uncompressed PCM, 44.1/48 kHz using standard XLR microphone or DMX cable
- Allows cascading with other StageConnect boxes, such as DN4816-I and DN4816-O for more analogue inputs and outputs
- Flexible connectivity on stage and between side racks using any balanced microphone cable
- Supports bi-directional audio configurations, with control data and 12 VDC/18 W remote power
- Master mode allows exchanging multichannel audio with a chain of other StageConnect devices
- Slave modes offer 8x8 or 16x8 channel configurations to be used with StageConnect-enabled mixing consoles, stage boxes and hubs
- Dual Ultranet outputs for feeding Behringer P16 personal monitoring and Turbosound iQ speaker systems directly from StageConnect and analogue inputs
- External power supply for standalone use and offering remote power on the StageConnect Master output
