Midas DN4816-O StageConnect Interface 16out, ULTRANET in/out
Description
Live Digital Console Control Centre with 144 Input Channels, 120 Mix Buses, 96 kHz Sample Rate and 21" Touch Screen

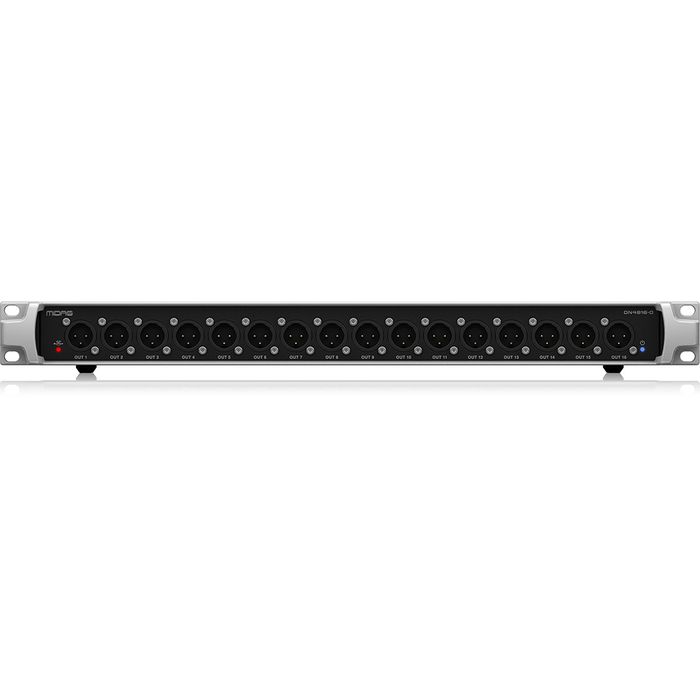

The Midas DN4816-O provides a dead-simple solution for piping 16 channels of analog audio from a StageConnect network. This bus-powered interface features 16 line-level analog outputs, plus two Ethernet ports: one to connect to Ultranet receivers, and a second to accept 16 channels from another Ultranet device. Configuring the DN4816-O is a piece of cake via a built-in Synchronization switch. You also get an LED that indicates a successful connection to a StageConnect network, plus a power LED and a USB port for firmware updates.
The StageConnect interface can be connected to other StageConnect devices using a single XLR cable for multi-channel audio transmission. There are various I/O options available providing easily scalable connectivity in your side rack. The devices of the DN48XX Series can be daisy-chained and will negotiate the channels for their respective connectivity automatically.
- Breakout box with 16 balanced XLR line out for StageConnect and Behringer Ultranet systems
- Analog output box for other StageConnect devices, Midas HUB4 and Behringer WING or Ultranet transmitters such as Midas MR18/M32 and DL16/DL32 stageboxes
- StageConnect 32-channel audio transmission at sub-millisecond latency, 24-Bit uncompressed PCM, 44.1/48 kHz using standard XLR microphone or DMX cable
- Two units can be cascaded for a total of 32 low-latency analogue outputs fed from a single StageConnect source
- Flexible connectivity on stage and between side racks using any balanced microphone cable
- Supports bi-directional audio configurations, with control data and 12 VDC/18 W remote power
- Master mode allows exchanging multichannel audio with a chain of other StageConnect devices
- Operates in Master mode, or as Slave synchronised to StageConnect or Ultranet input streams
- Ultranet output for feeding Turbosound iQ speaker systems and Behringer P16 personal monitoring directly from StageConnect bus
- External power supply for standalone use and offering remote power on the StageConnect Master output
