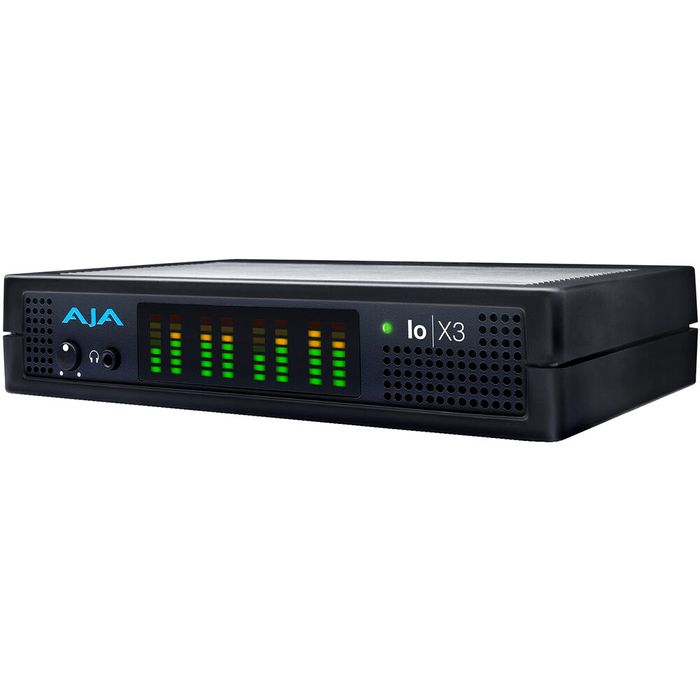

AJA IO-X3 Multi-Channel 2K/HD/SD Video I/O - Thunderbolt 3
Description
AJA Io X3 is perfect for high quality HDR or SDR video work with up to 60p HD/2K signals or files with support for all major NLE applications as well as other video applications such as OBS Studio, vMix and Telestream Wirecast. Connecting with a single Thunderbolt 3 cable and providing a second Thunderbolt connector for flexibility, Io X3's compact and quiet form factor is ideal for on set, in the studio, at an event or in the edit suite.
Key Features:
• 2K/HD/SD I/O up to 50/60p
• 4x bidirectional 3G-SDI BNC with 16-channel embedded audio
• HDMI I/O with 8-channel embedded audio
• Two Thunderbolt 3 ports with loop through
• Multi-channel workflow support for OBS/Wirecast/vMix and other applications
• YCbCr 4:2:2 10-bit up to 60p
• RGB 4:4:4 12-bit up to 30p
• VPID signaling for SDR/HDR Transfer Characteristics, Colorimetry and Luminance via SDI
• PQ, HLG, HDR10, HDR10+ and Dolby Vision Support
• HDR Metadata Capture and Auto Playback Detection
• Multiview output over HDMI, to view up to 4-channels on one screen
• Analog audio flexibility with a choice of 8-channel In or 8-channel Out or 4-channel In and 4-channel out via a standard Tascam connection
• Front panel audio display
• Includes support for the Apple M1 chip and the latest OS versions
• XLR 12V power for battery or AC use (AC adapter included)
• Headphone jack and level control for mobile and live environments
• RS-422 VTR control, Reference, LTC Input and LTC Output
Video connections consist of four bidirectional 3G-SDI inputs/outputs and individual HDMI 1.4b input and output with multiviews available via SDI or HDMI. The Io X3 supports HDR (high dynamic range), embedded 16-channel SDI and 8-channel HDMI audio, and analog audio output via a standard DB-25 connection. A 4-pin XLR power input is incorporated for powering the Io X3 with batteries or the included AC adapter.
HD/SD Video over Thunderbolt 3:
Capture, display, and convert HD/SD video at rates up to DCI 2K60 using a single USB Type-C Thunderbolt 3 cable with an identical loop-through. Supports all major NLE systems plus OBS Studio, vMix, Telestream Wirecast, and similar applications. Thunderbolt 3 supplies both Thunderbolt and power using a single cable with double the speed of Thunderbolt 2 at 40 Gb/s.
3G-SDI and HDMI Input/Output:
Input and output video using the four bidirectional 3G-SDI BNC ports and the single HDMI input and HDMI output connectors.
HDR and Dolby Vision Support:
Capture rich, true-to-like HDR (high dynamic range) images with support for HLG, HDR10, and Dolby Vision standards. HDR auto-playback detection automatically sets the HDR format on a monitor connected to the BNC or HDMI output ports. The Io X3 also supports .mov HDR outputs from Adobe Premier Pro/Media Encoder, setting the proper HDR format automatically.
Versatile Connectivity:
Practical connections include a 4-pin XLR power input, RS-422 (DB-9) machine control, and a DB-25 port for analog audio breakout via a separately available cable. Video connections include HDMI input and output, four bidirectional BNC 3G-SDI connectors, a BNC reference port, and individual LTC timecode BNC input and output connectors.
Audio Options:
Embedded digital audio is available via both the BNC SDI (16-ch) and HDMI (8-ch) ports with analog audio supported via a DB-25 connection.
Compact Form:
Two Io X3 units can be mounted side by side in just 1 RU space.
Multiview Output:
The Io X3 offers multichannel input and output and the HDMI output's ability to display all of these sources to one display and is fully compatible with OBS Studio software.
Apple M1 Chip Support:
Desktop Software v16.1 and higher is optimized for the Apple M1 chip with native support for AJA macOS drivers, application plug-ins, AJA Control Room, AJA Control Panel, AJA System Test and AJA NMOS software.
View the PDF for more information and specifications.
