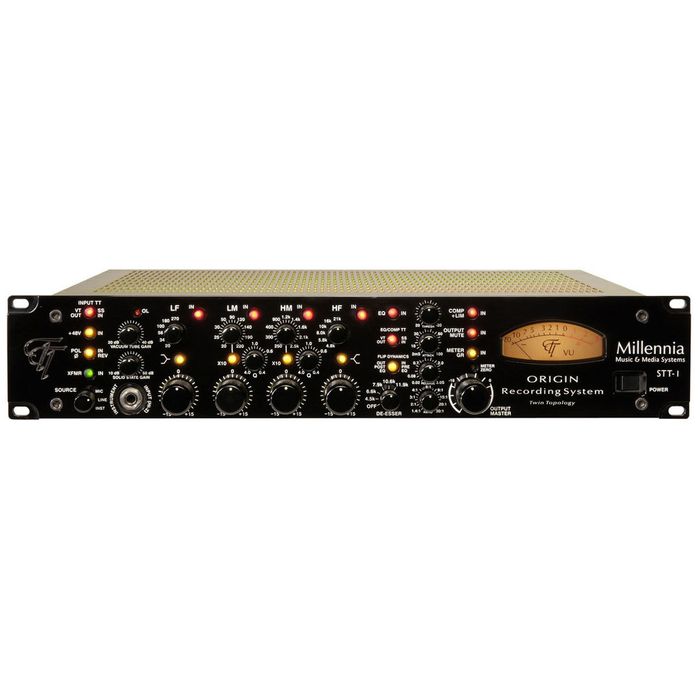

Millennia STT-1 The Origin Single Channel cw Twin Topology
Description
The ORIGIN, single channel (mono) Class A music recording system offering Twin Topology signal paths on every function — two mic preamps, two EQ’s, two opto- compressors, two de-essers, transformer / non-transformer (TLA), metering + numerous I/O functions. 134 possible signal-path combinations.
Key Features:
- Over 130 Optimized Signal Topologies
- Twin Mic Preamps — M-2B vacuum tube or HV-3 discrete solid state
- Twin NSEQ-2 Mastering-Grade Parametric EQs — vacuum tube or discrete solid state
- Three Opto Compressor/Limiter Paths — TCL vacuum tube, discrete solid state, passive
- Twin Opto De-Esser Paths — vacuum tube or discrete solid state
- Vacuum tube or discrete solid state line level paths
- Input coupling with or without MIT-01 audio transformer
- 1/4” vacuum tube DI input — route via tube or solid state gain path
- Effortless, lifelike musical performance at all levels
- Musically rich vacuum tubes available
- Gold audio connectors, tube sockets, relays and switches
- 3/8“ thick radius extruded aluminum face plate
- Durable black anodized finish
- Mil spec 16 gauge cold-rolled steel chassis
- Ultra-clean toroid power supply: internal sub-chassis
- Hand-machined aluminium knobs, illuminated IT&T pushbuttons
- Mogami Neglex OFC audio wiring
- Silver Teflon power wiring
- True audio VU meter for output level or dynamics gain reduction
- Lovingly hand-crafted in Northern California
The STT-1 Origin from Millenia is a collection of the company's essential product line combined into a single box. The STT-1 is a single channel processing chain with various signal path topologies (vacuum tubes, discrete transistors, audio transformer, transformerless) all selectable at the various functions.
The channel strip contains a dual topology microphone preamp, the EQ section of the NSEQ-2, and an opto compressor with 3 paths. A vacuum tube DI input can be routed through a tube or solid state gain path. The unit offers an entirely discrete, Class-A direct signal path from input to output. The signal path can be variously selected to use vacuum tubes or transistors, transformer or non-transformer coupling.
There are at least 134 different product combinations available in the STT-1 Origin - ranging from the most musically transparent, sonically accurate, and dynamically stable audio circuits, to sublime levels of vacuum tube and transformer "euphony", and everything in between. The possibilities afforded the creative engineers, producers and musicians are virtually endless.
View the PDF for more information and specifications.
