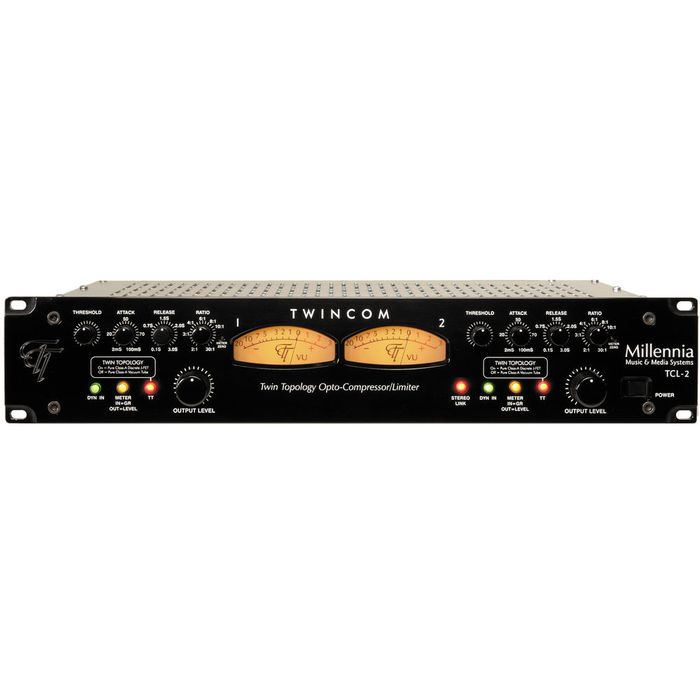

Millennia TCL-2 Twin Topology Stereo Compressor/Limiter
Description
The TWINCOM, two channel Class A vacuum tube opto-compressor/limiter and two channel Class A solid state opto-compressor/limiter in the same chassis; selectable via the push of a button. Twin Topology.
Key Features:
- Two paths to perfection with Twin Topology™
- Stereo optical compressor/limiter with unprecedented sonic purity & integrity
- All triode 300 V vacuum tube signal path or...
- All discrete J-FET solid state signal path
- Both topologies are entirely transformerless, high voltage, pure Class A
- Minimalist design: only one active stage in the audio path
- Threshold: Infinity to + 20 dBu
- Ratio: 1.4 : 1 to 30 : 1
- Attack: 2 to 100 ms
- Release: 100 ms to 3 s
- Large meters: switchable for VU or Gain Reduction
- Constructed for demanding professional applications
- Ultra-Premium components throughout
- Gold relays, connectors, switches, tube sockets
- Silver Teflon power wiring, Mogami Neglex OFC audio wiring
- Detented, loggable controls (option)
- Lovingly hand-crafted in Northern California
Ultra-transparent Tube/Solid-state Compressor:
The Twincom (TCL-2) is an ultra-transparent, two channel opto-compressor/limiter offering Class-A biased all discrete J-FET solid-state operation or Class-A biased all triode vacuum tube operation at the touch of a button. The TCL-2 (tm) Twincom stereo compressor/limiter with Twin Topology - Millennia's innovative new merging of vacuum tube and solid state circuit topologies. A front panel switch selects between a complete vacuum tube audio path or a fully discrete solid-state audio path - in the same chassis. Both circuit topologies are entirely transformerless, high voltage, and minimalist.
Minimalist Audio Signal Path:
What is "minimalist?" The Twincom has only one active stage in the audio signal path. Compare this with common textbook compressor designs employing multiple amplifiers in the signal path. Fewer amplifier stages means greater sonic integrity and heightened musical reality. This one amplifier stage is optimized as input buffer, dynamics amplifier, and output driver. Greatly increased musical clarity is achieved as precious audio signals are spared from successively colored amplifier stages.
Entirely Balanced Circuit:
The Twincom is also designed as an entirely balanced circuit. In most professional audio gear, balanced input signals become unbalanced by a transformer or electronic circuits, and perhaps rebalanced at the output via similar methods. The Twincom never unbalances. Rather, the balanced input signal remains balanced from input to output, avoiding the need for audio transformers or additional amplifiers in the signal path.
Transformerless Design:
Why transformerless? Most of today's high voltage pro tube gear uses audio transformers. Yet, transformers add coloration to audio signals; coloration which is not conducive to sonic purity. Via innovative design techniques, the Twincom avoids audio transformers entirely. Now, the remarkable musicality of Class-A triode dynamics can be realized without the unavoidable sonic artifacts common to signal path transformers.
Twin Topology:
The solid-state aspect of Twin Topology consists of 100% Class-A all discrete J-FET (field effect transistor) amplifiers. Millennia also provides these J-FET amplifiers as the next generation of 990 (Jensen tm) and 2520 (API tm) plug-in-compatible modules. The vacuum tube aspect of Twin Topology employs 300 volt, 100% Class A, hand tested and selected triode vacuum tubes. To use the vacuum tube amplifier, simply press a front panel switch. To use the solid-state amplifier, press the switch again. Twin Topology! Both topologies are designed to deliver a musical optimization of their inherent character.
View the PDF for more information and specifications
