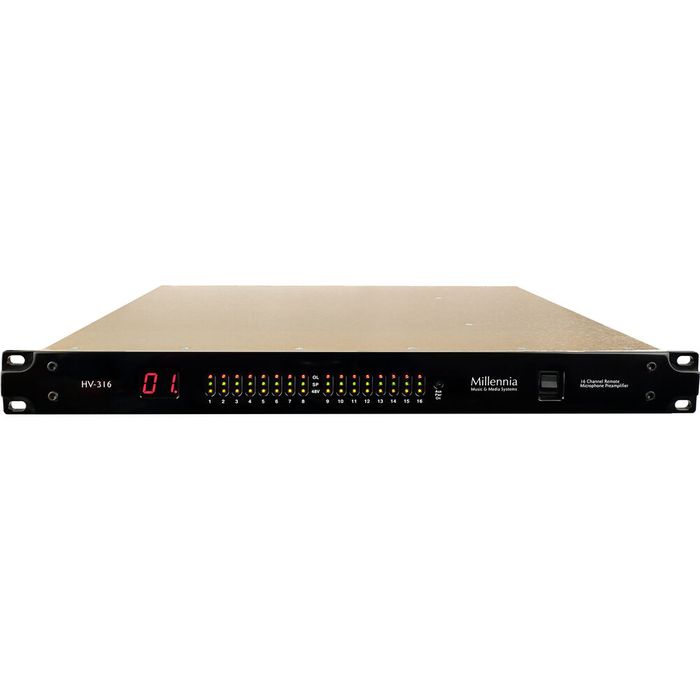

Millennia HV-316/16 16 Ch Remote Dante Network Mic Preamp
Description
Remote-control-only 16-channel HV-3 in 1U rack chassis. Dante 192kHz Output. Designed for all professional environments. Ethernet control with PC or MAC software interface (included). DB-25 mic inputs. Analog Output option. MIDI control for plug and play compatibility.
The Millennia HV-316 is a cutting-edge 16-channel remote-control Ethernet mic preamp designed for adverse environments and mission-critical applications such as live touring rigs, scoring stages, remote recording trucks, sample houses, hot-rack installs, schools, churches, networked music venues, location recording, outdoor facilities, and multi-room studio complexes. The HV-316’s road-ready, lightweight military-spec aluminum 1U chassis houses 16 channels of legendary Millennia HV-3 mic preamps with simultaneous analog and Dante 32-bit/192kHz Ethernet outputs.
Key Features:
- 16 channels of pristine Millennia HV-3 microphone preamplifiers in a road-hardened 1U chassis
- Effortless, vividly realistic, dynamically uniform HV-3 musical performance
- Dante network output standard -- analog output option.
- Both 12VDC (battery) and 80-264VAC worldwide powering
- Redundant power supply for fail-safe, glitch-free operation
- Paralleled next-generation AKM A-to-D conversion
- Designed for ultra-high-temperature continuous operation (65C / 150F)
- RF “pi filter” shielding provided on analog and digital feeds, destroys mobile interference
- Control up to 256 channels at once via conventional Ethernet
- +34dBu input headroom for use in the most extreme audio environments
- Matched discrete-octet transistor gain topology, the classic Millennia HV-3 double-balanced circuit
- Ælogic Mac & Windows third-generation software offers total control for both HV-316 and HV-3R on the same network
- High-definition meters, grouping, linking, scene management, temperature monitoring
- Entirely balanced audio path with precision components maintains signal integrity: THD under 10 PPM (< .001%)
- Laser-trimmed FET-based output stage (analog output option) drives 1000-foot (300m) cable runs with ease
- All channels matched to 0.08 dB
- Advanced power supply rated for 650,000 hours MTBF operation
- Aluminum 16-gauge rack chassis, ultra-lightweight, just 4.5kg
- Billet aluminum laser etched front-panel
- Lovingly hand-built and quality-assured in Northern California USA
Designed for adverse environments and mission-critical applications:
Extensive RF shielding is provided on audio and digital feeds to eliminate the possibility of cellular interference. Designed to withstand continuous operating temperatures up to 150° F, the HV-316 can be powered by both 12VDC and worldwide 90–240V AC with fail-safe operation.
Acclaimed Millennia remote preamps:
Millennia remote preamps can seamlessly operate on a single Ethernet network — up to 384 redundant audio channels — letting you remotely control Gain, Polarity, Pad, Mute, channel Linking, HPF, and selectable ribbon or phantom paths on every channel. You also have unlimited scene recall scripting and virtual scribble-strips.
Next-gen 192kHz A/D conversion:
The HV-316 uses 16 channels of meticulously integrated, next-generation AKM 192kHz A/D converters, multi-paralleled for extreme dynamic range performance and acclaimed Millennia sonics. All internal processing is achieved via a generic plug-and-play Linux Beagle processor to ensure non-obsolescence and easy field replacement. To say that engineers at Sweetwater are impressed with the Millennia HV-316 would be an understatement. With its bulletproof build, audiophile sonics, and innovative remote control capabilities, it’s a stunning technological achievement.
Options:
- Analog Output
View the PDF for more information and specifications
