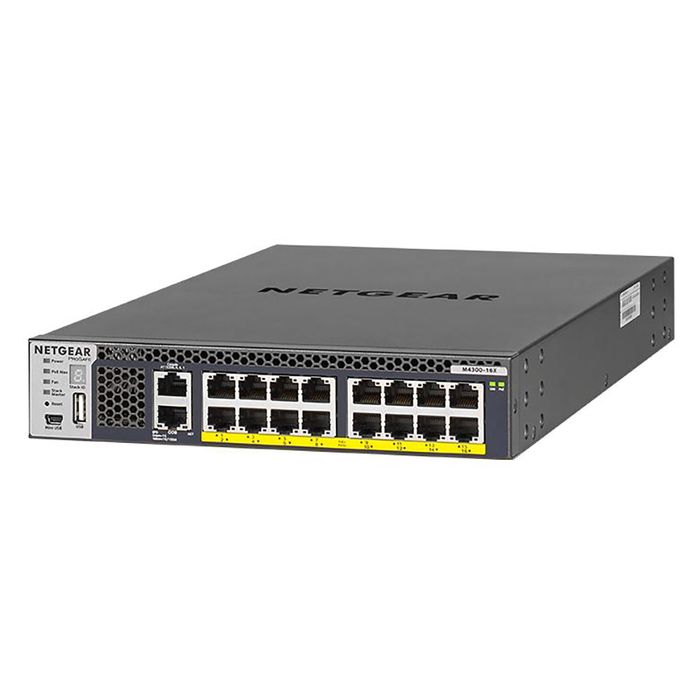

Netgear M4300-16X 16x Multi-Gig, PoE+ (600W) Managed Switch
Description
M4300-16X 600W PSU (XSM4316PB): 16x Multi-Gig, PoE+ (600W) Managed Switch
Half-Width Stackable Managed Switch with 16X 10G / MultiGig Ports and 600W PoE+ Budget - IT Core & AV-over-IP
Reliable
High Availability (HA):
Non-stop forwarding (NSF) virtual chassis architectures with hitless failover across the stack
Multi-Resiliency:
Stacking and distributed link aggregation allow for zero downtime and load balancing capabilities
PVST+ Interoperability:
Per VLAN Spanning Tree and Per VLAN Rapid Spanning Tree (PVSTP/PVRSTP)
Link Dependency:
Enables or disables ports based on link state of different ports
Advanced IPv4/IPv6 security:
Malicious code detection, DHCP Snooping, IP Source Guard protection and DoS attacks mitigation
600W PSU:
Ships with 600W PSU APS600W installed
All (16) 10G/Multi-gig ports can provide 30W of PoE+ power (500W budget)
Also available with smaller 299W PSU APS299W
Easy to Manage
Half-Width ToR:
Combine 2 half-width models in a single rack space for redundant Top-of-Rack
Simple GUI:
Full- functional Web console (GUI) for IT admins who prefer an intuitive graphical interface
Flexible & Efficient:
Line-rate Spine and Leaf topologies offer many possibilities for server rooms, branch collapsed cores, or at the edge of growing networks.
Mix & Match Stacking:
Stack between 10/40 Gigabit and 1 Gigabit models using any 10G/40G port, with any media type (RJ45, SFP+, DAC cables). Vertical, horizontal, manage as one unit
Room to Grow:
With PoE+, upgradeable PSU plug and play ports, and hot swap, you're ready to grow whenever you need to.
Industry Standard:
SNMP, RMON, MIB, LLDP, AAA, sFlow, RSPAN and PTPv2 1-step transparent clock implementation (select M4300 models)
Ready for AV over IP
Pre-configured for Out-of-Box Multicast/IGMP:
Just plug in the switch and play!
Non-Blocking Fabric for Near-Zero Switch Latency
NETGEAR IGMP Plus™:
Prevent network flooding with effortless multicast implementation of Layer 2 Multicast
Dedicated Design:
ProAV Engineering Services for AV Network Design and Install Support ProAVDesign@NETGEAR.com
