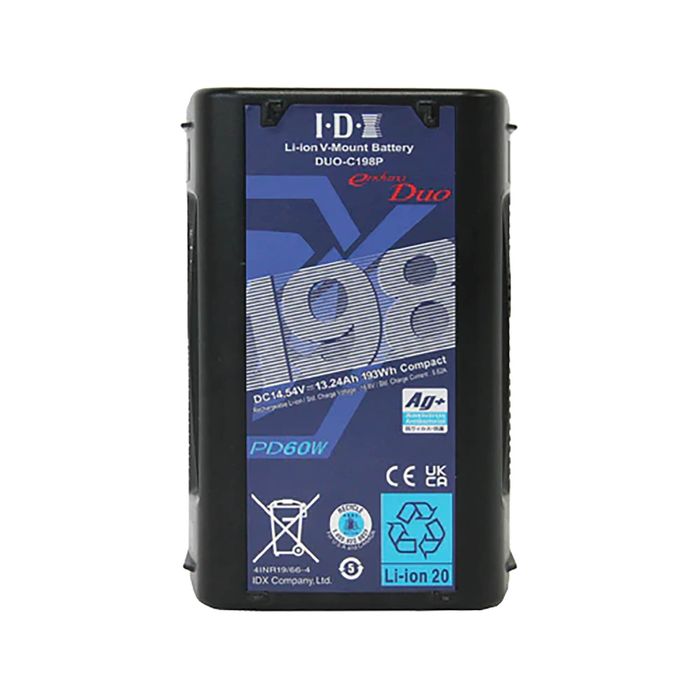

IDX DUO C198P 97Wh Li-ion V-Mount Battery with 2x D-Taps & 1x USB-C

Price:
$550.00 (excl. GST)
Stock Code:
150619
Enquire for ETA

Description

The DUO-C198P is the successor of the popular DUO-C198 battery. Ideal compact battery solution for digital cinema cameras and camera stabilizer systems where long runtimes are required. With its ultra-robust 193Wh capacity and compact 2.4lb design, the DUO-C198P can provide mobile power to cine-style cameras such as the ARRI ALEXA Mini and RED Weapon effortlessly for extended periods at a time. The DUO-C198P also includes two built-in D-Taps and now features a USB-C port to power accessories as well as charge the battery. Also, V-Torch LED for use in dark environments and SMBus to display battery info via viewfinder on cameras such as ARRI and RED.


Tech Specs:

- Capacity: 193Wh (14.54V/ 13.24Ah)

- Max Output Voltage:16.8V DC

- Nominal Voltage:14.54V DC

- Max Discharge Current:14A‡

- D-Tap:80W each

- USB:DC 5V/3A, 9V/3A, 12V/3A, 15V/3A, 20V/3A, Max 60W

- End Voltage:11V

- Battery Protection:Over-charge, Over-discharge, Over-current, Thermal protection

- Ambient Temperature:
To charge: 0°C ~ 40°C (10°C ~ 30°C recommended)
To discharge: -20°C ~ 45°C (10°C ~ 40°C recommended)
To store: -20°C ~ 50°C (less than 1 month)

- Dimensions: 9.7(W) x 14.6(H) x 5.8(D) cm

- Weight: 1.1 kg approx.
