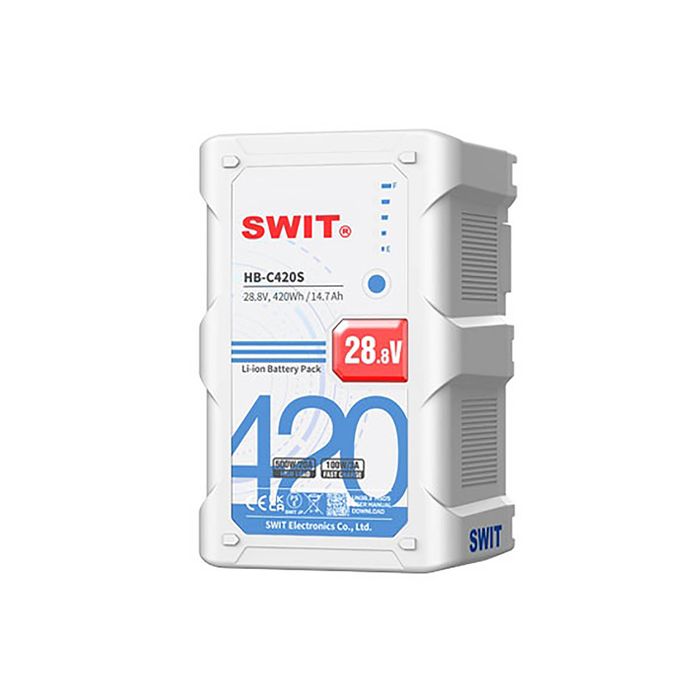

Swit HB-C420S 500W High Load 420Wh V-mount Battery
Description
HB-C420S provides the world’s largest capacity: 420Wh of handheld V-mount battery, and the world’s largest constant power load: 500W, to drive high power cine lights at longest time. For example, 2x HB-C420S could power Aputure LS 600C PRO at 100% output, and at least 1.2 hours.
HB-C420S consists of 24pcs Li-ion cells, 28.8V (22-33.6V) high voltage, 420Wh large capacity, 500W constant load.
Please do not use the battery on the device that doesn’t support 22-33.6V input.
HB-C420S outputs at least 500W high load even at 1% capacity (Peak load up to 650W), to drive high power gears like the cines lights.
Use SWIT dual batteries light stand adaptor TD-R230S, 2x HB-C420S could output 48V 750W to power cine lights like Skypanel S30/60/120, Orbiter, Creamsource Vortex 4 & Vortex 8, Aputure Nova P300/P600 etc.
2x HB-C420S and TD-R230S power adaptor could output 48V 750W DC to full power drive Creamsource Vortex 8 light which requires 650W power.
The 2 batteries totally have 840Wh capacity, comparable with a large floor battery but it’s attached on light stand for easy movement, and will power the Vortex 8 for at least 1hr 20min.
HB-C420S supports DC 33.6V 100W fast charging by PC-P461S charger, to save more than 60% charging time. The 420Wh battery can be charged from 0 to 80% after 3.9 hours, and fully charged within 5.3 hours.
Key Features:
- 28.8V (22-33.6V) high voltage
- Standard V-mount connection
- 420Wh large capacity
- 500W constant high load, 650W peak load
- 33.6V 100W fast charging support
- 5-LED digital power indicators
- Multiple circuit protections
