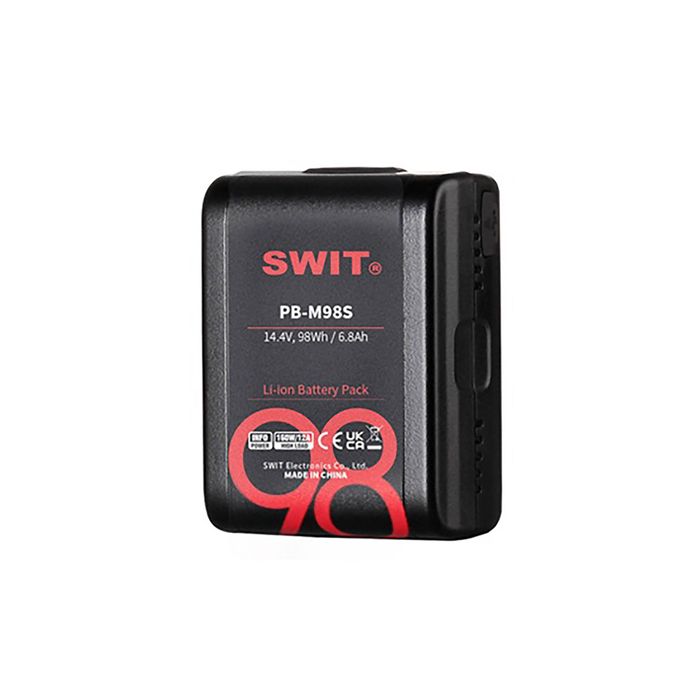

Swit PB-M98S 98Wh Pocket V-mount Battery Pack
Description
The brick size V-mount batteries are always too big and heavy for field shootings, especially the handheld stabi- lizers, focus puller monitor, portable LED panel, or small cameras.
PB-M98S Pocket V-mount battery is designed for the above applications!
It’s only a DV battery size, with high capacity cells and still reaches 98Wh, and without any compromise on the DC sockets!
150W/12A constant high load - PB-M98S consists of 8pcs of high class 18650 battery cells, nominal voltage is 14.4V and reaches 98Wh / 6.8Ah high capacity. You can take this battery in carry-on luggage to board airplane.
The constant load is as high as 150W, 12A, applicable for high power devices.
The pocket size PB-M98S still has D-tap and USB sockets built-in. The D-tap socket has 100W/8A load, and support charging input by SWIT PC-U130B2 dual D-tap charger.
The USB socket outputs 5V/2A for smart phone fast charging.
Low battery warning - PB-M98S has 5-LEDs to indicator remaining power percentage. When remaining power is less than 10%, the last LED will flash automatically to remind changing battery.
PB-M98S can be charged by all standard V-mount chargers and D-tap chargers. Max charging current is 3A.
The following chargers are recommended:
- 1. S-3822S, Portable 2-ch Simultaneous Charger
- Charge 2x PB-M98S: Approx. 3 hours
- 2. PC-U130B2, Ultra-Portable Dual D-tap head charger
- Charge 1x PB-M98S: Approx. 3 hours
- Charge 2x PB-M98S: Approx. 5 hours and 15 minutes
You can use 2x PB-M98S hot-swapable on cameras, by the Hot-swap Adaptor KA-M20S, to get a long time, uninterrupted power, and equivalent to a standard size V-mount battery.
Key Features:
- Tiny V-mount battery, Pocket fit
- 98Wh/6.8Ah fly-friendly capacity
- 150W/12A constant high load
- 1x D-tap output & charging input
- 1x USB 5V/2A output
- 5-step LED power indicator
- Power info for both SONY & RED
- Wire-Free internal technic
- Multiple circuit protections
