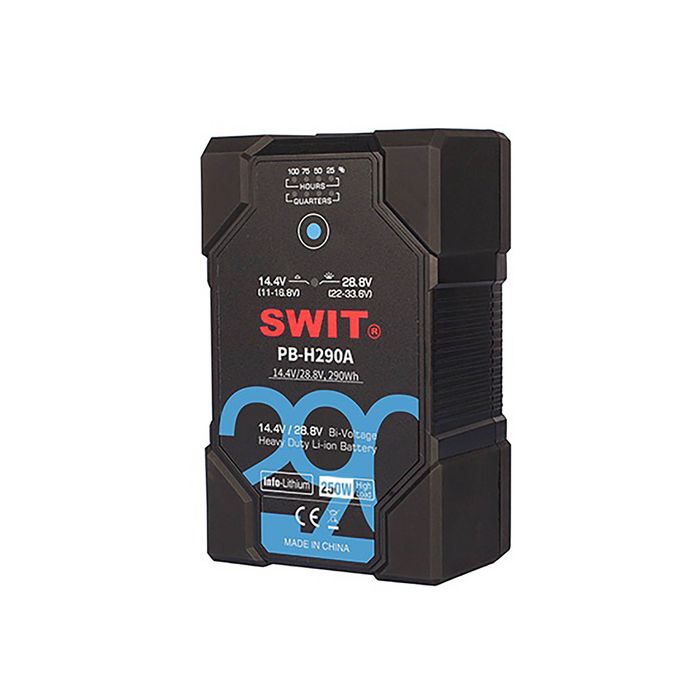

Swit PB-H290A/S 290Wh High Load Bi-voltage Battery
Description
Many high power film devices are designed 22-33.6V high power input, to reduce current. If a standard Gold mount battery output high voltage directly, it will damage normal 14.4V voltage devices. SWIT innovative “Bi-voltage” battery adopts standard Gold mount, and output 11-16.8V normal voltage or 22-33.6V high voltage by automatic recognition and switching, and compatible for all normal voltage chargers, safe and reliable.
PB-H290A will detect SWIT dedicated Gold mount plate and output 22-33.6V high voltage. With TD-R210A Dual Batteries Light Stand Adaptor, PB-H290A will output 22-33.6V, and 2x PB-H290A can output Max 48V/500W, for Skypanel S60/S120 and Orbiter 100% output.
PB-H290A consists of 24pcs high class 18650 battery cells, and reaches 260Wh high capacity, Max constant load is 250W. To drive high power cine camera and lights, and the high load battery will have longer life time than normal battery if always under full load power.
PB-H290A supports 6A fast charging by SWIT S-3812A or PC-P461A fast charger, to save up to 60% charging time, can be charged from 0 to 80% after 2 hours 30 minutes, and fully charged within 3 hours 50 minutes.
AD-tap DC output socket is equipped on the top side of the battery pack, to power the other on-camera equipment to- gether.
- Under 14.4V (11-16.8V) output mode, D-tap output 11-16.8V and Max load 120W/10A
- Under 28.8V (22-33.6V) output mode, D-tap output con- stant 16V and Max load 50W/3A
Key Features:
- 14.4V/28.8V Bi-voltage auto switch
- For ALEXA LF/65 high voltage cameras
- For all normal voltage cameras
- For high voltage cine lights
- Compatible with normal voltage chargers
- 290Wh capacity, Max 200W high load
- 6A fast charging support
- 8-LED remaining time indicators
- D-tap power output socket
- Normal V-mount connection
- 1.5m drop-off proof, IP54 waterproof
- Multiple circuit protections
