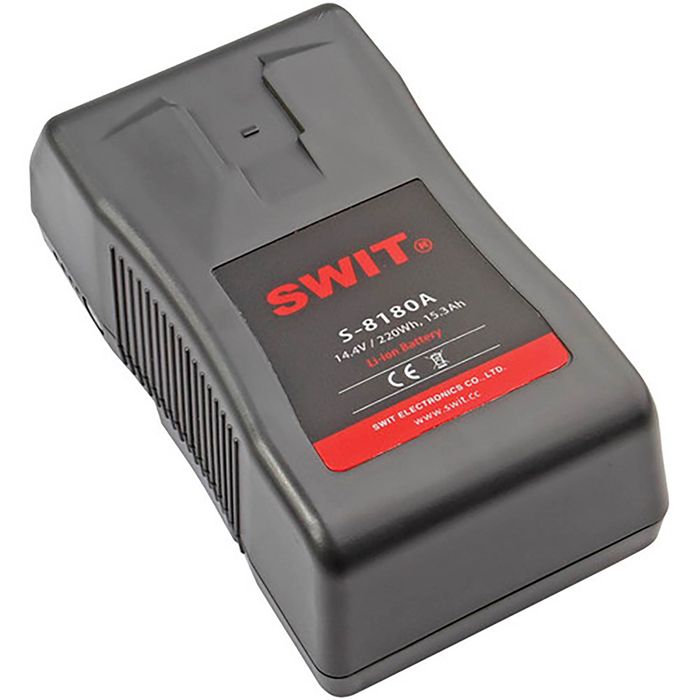

Swit S-8180A/S 220Wh High Load Gold Mount Battery Pack
Description
Max 200W, 16A constant power output Perfect for high draw power application
Normal Li-ion batteries offer 100W/8A output and suitable for most ENG cameras, but the Cine Cameras such as ALEXA require around 85W high draw which is too heavy for the normal Li-ion batteries: the battery life will be re- duced if long time full draw powering. Moreover, if there’re monitor, lighting work together, and total power will be above 100W, and the normal batteries can not draw completely. Using S-8180S high-load battery, you can get MAX 200W/16A constant power output, which can drive more high power cameras, lightings and other equipments easily, and won’t reduce battery life during long time high power output.
Consists of 24pcs 18650 battery cells, and reaches 220Wh / 15.3Ah high capacity. Can run approx 7 hours for normal 30W ENG cameras; and approx 2.5 hours for ARRI Alexa camera
S-8180A is compatible with AntonBauer Gold mount type power system and we adopt the high quality connection bolts that ensure the reliable mounting.
A D-tap DC output socket is equipped on the top side of S-8180A battery, for DC14.4V (Nominate) connection, such as on-camera lights, monitors, wireless transmitter, etc.
The Max Power from D-tap is 120W, 10A.
On the side of the battery, there’re 4-level LED power indicators to check the battery remaining capacity. You can get a quick view of capacity before using.
Key Features:
- High-load Li-ion cells
- At least 200W, 16A constant load
- 14.4V, 220Wh capacity
- D-tap output socket
- 4-level LED power indicator
- Gold mount type connection
- 0.8m drop-off proof
- Multiple circuit protections
