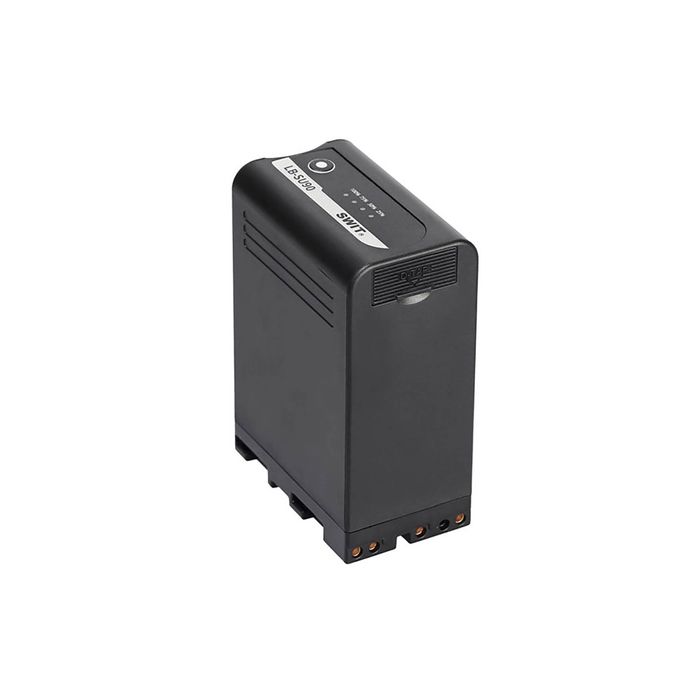

Swit LB-SU90 SONY BP-U Series Battery Pack
Description
SONY BP-U series DV battery
LB-SU90 is SONY BP-U60 compatible battery, suitable for SONY PXW-FX9 / FS7 / FS5, PXW-Z280 / Z190 / X280
14.4V nominal voltage, 90Wh/6200mAh large capacity, which can continuously work for SONY PXW-FX9 for about 3 hours.
The LB-SU90 is equipped with a D-tap socket on the side, which is used for external news lights, monitors, wireless video transmission and other equipment, with a continuous load of at least 70W and 6A. The D-tap can also be used for charging, with the SWIT ultra-portable D-tap travel charger PC-U130B/B2.
There is a standard USB socket on the other side, which can be used as a power bank. Connect to a USB device, such as a mobile phone, tablet, etc., press the power button on the front of the battery to start outputting 5V/2A power to charge the USB device.
The LB-SU90 battery has the 4-level LED power indicators to check the battery remaining capacity. You can get a quick view of capacity before using. The power check button can also be used to trigger USB charging.
Easy Charging
The LB-SU90 can be charged on SWIT 2-ch charger S-3602U or 4-ch charger LC-D421. And you can also use SWIT PC-U130B/B2 Portable D-tap Charger for LB-SU98.
By S-3602U/LC-D421 will take about 4 hours and 30 minutes to charge from empty to 100%.
By PC-U130B/B2 will take 2 hours and 50 minutes to fully charge.
Key Features:
- 14.4V nominal voltage Li-ion battery
- Compatible with SONY BP-U batteries
- Display remaining power info in camera
- 90Wh / 6.2Ah capacity
- Built-in 14.4V D-tap output / Charging input
- Built-in 5V/2A USB output
- 4-level LED power indicator
- Multiple circuit protections
