Magewell Pro Capture AIO Card
Description

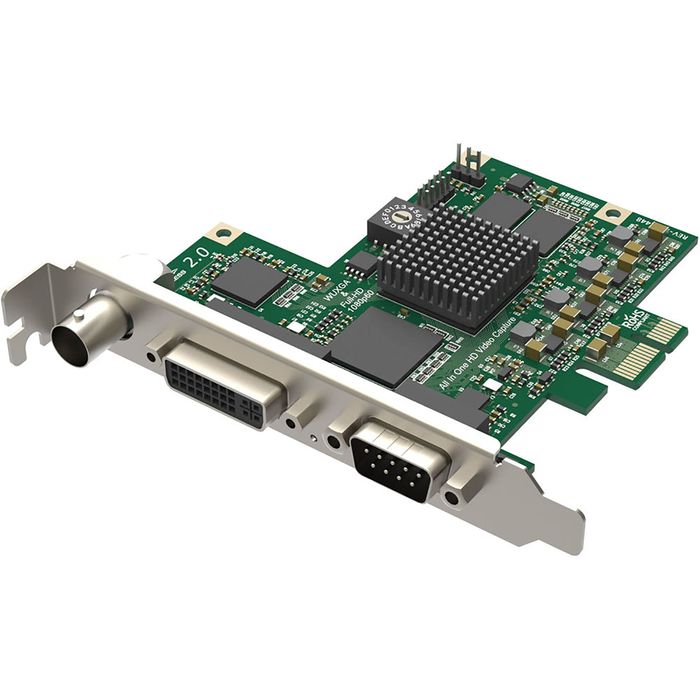

Magewell Pro Capture AIO - All-In-One 1-Channel HD Capture Card
The Pro Capture AIO from Magewell is an all-in-one PCIe 2.0 x1 card capable of capturing a single channel of SDI + embedded audio, HDMI + embedded audio, DVI + audio, VGA + audio, Component + audio, Composite + audio, or S-video + audio. It supports input video resolutions up to 2048x2048, featuring both automatic and manual selection of video and audio input sources, and it supports output resolutions up to 2048x2048 with frame rates up to 120 fps. Not only does the Pro Capture AIO support numerous parameter formats and standards for each input type, but it also offers multiple video processing features (see below for details).
Pro Capture AIO supports multiple cards in one system by using a 16-position rotary switch to set the card number. It also supports unlimited output streams with independently adjustable parameters per stream. Additional features include ultra-low latency, timestamp and A/V synchronization, and LED status indicators. This card supports Linux and Windows operating systems, with APIs for both, and includes Windows SDKs for easier integration. A DVI to VGA adapter, a DVI-I to HDMI + Component breakout cable, and a DB9 to YC + Composite + Analog Audio + Component breakout cable are all included.
Key Features:
- SDI + embedded audio/analog audio
- HDMI + embedded audio/analog audio
- DVI + audio
- VGA + audio
- Component + audio
- Composite + audio
- S-video + audio
