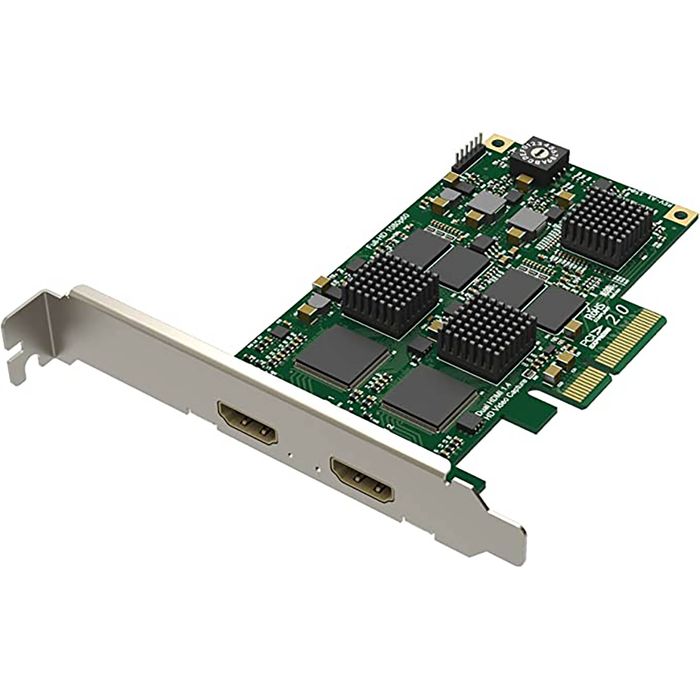

Magewell Pro Capture Dual HDMI Card
Description
The Pro Capture Dual HDMI Card from Magewell is a low-profile PCIe x4 card that allows for capturing 2 channels of HDMI input. The card supports multiple color sampling modes, 10- and 12-bit color depths, up to 8 audio channels at 48 kHz, and output resolutions up to 2048x2048 with frame rates up to 120 fps. The card is also capable of numerous video processing features, including cropping, scaling, de-interleaving, aspect ratio conversion, color format conversion, video frame rate conversion, and video OSD composition.Pro Capture HDMI Card supports multiple cards per system and unlimited output streams with independently adjustable parameters per stream.
Additional features include ultra-low latency, timestamp and A/V synchronization, and LED status indicators. The card supports both Windows, Linux, and Mac operating systems, multiple APIs for Windows and Linux, and provides Windows SDKs for easier integration.
Key Features:
- PCIe 2.0
- Capture 2k x 2k
- Compatible with Windows
- Compatible with Linux
- Compatible with Mac OS X
- Up/down Scaling
- Deinterlacing
- Multiple Streaming
- Automatically Detecting Input Signal
- High-fidelity Video Processing Pipeline
- Image Control
- Various Output Colour Spaces
- SG-DMA Transmission Mode
- Multiple Devices on One Host
- Hardware Time Stamp
- Mounting Hole
- Rotary Switch
- High-speed Memory
- LED Indicator
- Firmware Upgrade
- Common Driver
- Continuously Works 24 x7
