Magewell Pro Capture SDI 4K Plus

Price:
$2,258.00 (excl. GST)
Stock Code:
150683
Enquire for ETA

Description

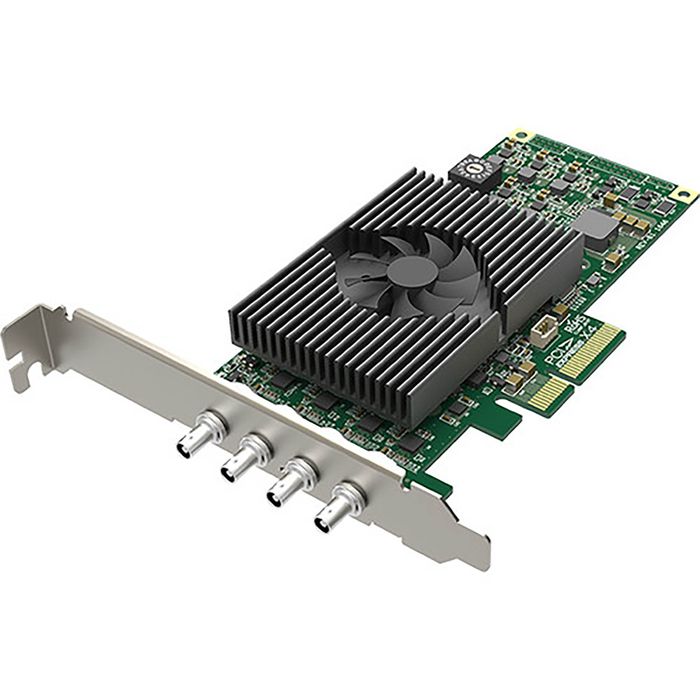

Magewell Pro Capture SDI 4K Plus Capture Card
Capture 4K resolution video using the low-profile Pro Capture SDI 4K Plus Capture Card from Magewell. This PCI Express x4 capture card is compatible with DCI 4K and UHD video formats up to 4096 x 2160, and features four high-definition BNC ports out of which two support SDI formats up to 3G-SDI, one up to 6G-SDI, and one up to 12G-SDI. Capture uncompressed video from a camera or switcher's SDI output on your computer for recording, editing, or streaming.

The Magewell Pro Capture SDI 4K Plus is compatible with Windows, macOS, and Linux systems. Extraction of audio-formation and channel-status data is supported as are closed caption and multiple color spaces in 8- and 10-bit formats. Video processing features include frame-rate conversion, cropping, scaling, de-interlacing, and aspect-ratio conversion. Multiple Magewell 11180 cards can be used and numbered in one system.


Key Features:

  • 2x 3G-SDI, 1x 6G-SDI & 1x 12G-SDI Inputs

  • PCIe x4 Interface

  • Supports up to 4096 x 2160 DCI 4K Video

  • 10-Bit / 8-Bit Processing

  • Multiple Color-Space Support

  • Cropping, Scaling, De-Interlacing

  • Frame-Rate & Aspect-Ratio Conversion

  • macOS, Windows, and Linux Compatible

  • DirectShow, DirectKS, V4L2 Compatible

  • LP Bracket & 4 x BNC Cables Included
