Magewell Pro Capture HDMI 4K Plus
Description

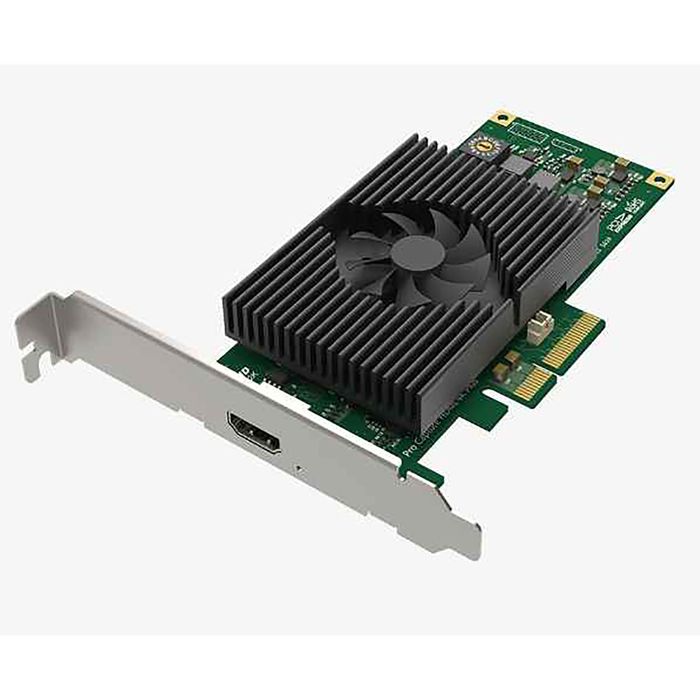

Magewell Pro Capture HDMI 4K Plus Capture Card (1-Channel)
The Pro Capture HDMI 4K Plus Capture Card from Magewell is a low-profile PCIe x4 card that allows for capturing a single channel of HDMI + embedded audio. The card supports extraction of AVI/Audio/SPD/MS/VS/ACP/ISRC1/ISRC2/Gamut InfoFrames, audio formation information and channel status data, video timing information, 3D format information, and Sony/Canon DSLR timecode. The card is also capable of performing various video processing features, including cropping, scaling, deinterlacing, aspect ratio conversion, color format conversion, video frame rate conversion, and video OSD composition.
HDMI Features:
- 594 MHz HDMI receiver
- Adaptive HDMI equalizer
- Supports customized EDID
- Full colorimetry support
- Supports 8/10/12-bit color depths
- Supports RGB 4:4:4, YCbCr 4:4:4, YCbCr 4:2:2 color sampling
- Supports up to 8-channel IEC60958/IEC61937 audio streams
- Support for side-by-side half, top-and-bottom, frame packing 3D mode
Video Processing Features:
- Two video processing pipelines with 720 MP/s processing bandwidth
- Full 10-bit video processing
- Wave, blend top and bottom field, top field only, and bottom field only deinterlacing modes
- Auto or manual selection of input and output aspect ratio
- Three aspect ratio conversion modes (ignore (anamorphic), cropping or padding (letterbox or pillarbox))
- Auto or manual selection of input color format and quantization range
- Auto or manual selection of output color format, quantization range, and saturation range
- Supports RGB, YCbCr 601, YCbCr 709, YCbCr 2020 color formats
- Supports limited or full quantization range
- Supports limited, full, and extended gamut saturation range
- Supports PNG OSD image (up to 4096 x 2160)
- Supports dynamic loading of RGBA OSD image via SDK
Multiple Cards Per System:
- Supports multiple cards in one system
- On-board rotary switch to set card number, with 16 positions from 0 to F
- System hardware device tree will display 01: Pro Capture AIO when rotary switch is set to 1, and so on
- The video and audio device names displayed in your software will include the card number (set by the rotary switch)
Multiple Capture Streams:
- Unlimited capture streams for any one input channel
- Independent cropping, aspect ratio, color format, resolution, frame rate, deinterlacing, and color adjustment settings for each individual stream
Ultra-Low Latency Support:
- Latency of 64 video lines
- Partial notification mode in SDK
Timestamp & AV Synchronization:
- Hardware-based 100ns high-resolution clock
- Audio frames (192 audio samples) & video frames are stamped with hardware clock
- Hardware clock can be synchronized across cards (via SDK)
Video Output SG-DMA:
- Supports auto detection of Intel tiled GPU surface
- Supports DirectGMA for AMD video adapter chipsets
- Supports GPUDirect for NVIDIA video adapter chipsets
- 1600 MB/s per channel DMA bandwidth in PCIe 2.x system and 800 MB/s per channel DMA bandwidth in PCIe 1.0 system
SDK:
- Pro Capture SDK for DirectShow for easy integration (Windows)
- Pro Capture SDK for DirectKS for maximum flexibility & performance (Windows)
Windows Driver Tweaks:
- All options can be controlled by three levels of registry key: global level, product level, and device level
- Video, audio, crossbar filter names can be customized via registry keys
Firmware Upgrade:
- Multiple cards in one system can be upgraded simultaneously
- Cards can be upgraded without a system power shutdown (in most cases, even a reboot is not needed)
