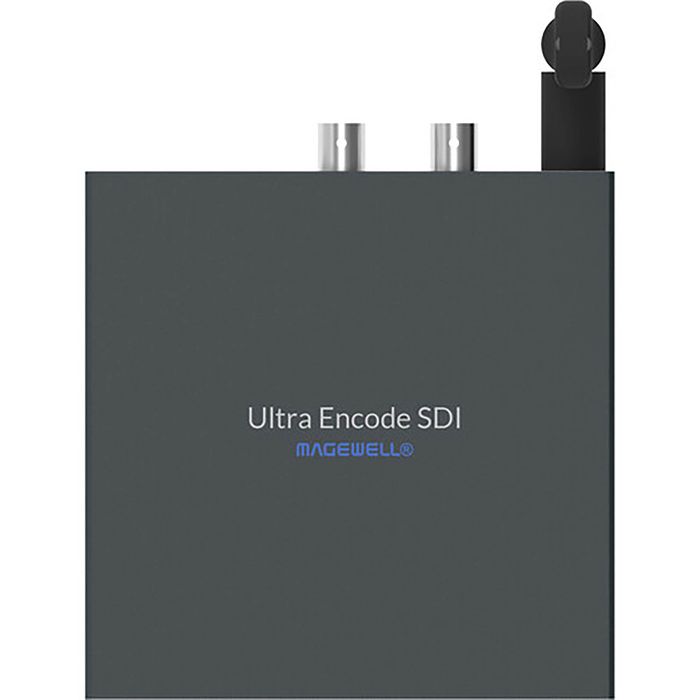

Magewell Ultra Encode SDI
Description
In a simple design with both an Ethernet port and Wi-Fi, the Magewell Ultra Encode SDI features a 3G/HD/SD-SDI input and loop output, 16-channel embedded audio support, and 3.5mm audio input and output. It supports up to DCI 2K60 input and encodes up to 1080p60 in H.264/265 with 2-channel AAC audio. The compact encoder allows dual streaming with a 16 Mb/s main stream and 2 Mb/s sub stream. Audio can be embedded into the encoding stream or extracted via the 3.5mm line out.
You can stream to two destinations at the same time (limited to select protocols), and the encoder provides native support for popular destinations such as Facebook, YouTube, and Twitch. Supported streaming protocols include RTSP, RTMP, RTMPS, SRT Caller, SRT Listener, NDI|HX2, HLS, TS over UDP, and TS over RTP. The Ultra Encode SDI can be controlled via a Web UI or HTTP APIs.
The encoder can be used desktop mounted or attached to your camera or various supports via an included T-Bracket that provides a 1/4"-20 threaded mounting hole.
Key Features:
- Up to 2048x1080p60 Input & Loop Output
- Dual Stream H.264/265 Encoding with AAC
- 16 Mb/s Main and 2 Mb/s Sub Stream
- 16-Channel SDI Embedded Audio
- 3.5mm Audio Line In and Line Out
- Wide Streaming Protocol Support
- Control via Web UI or HTTP APIs
- Native Facebook, YouTube, Twitch Support
