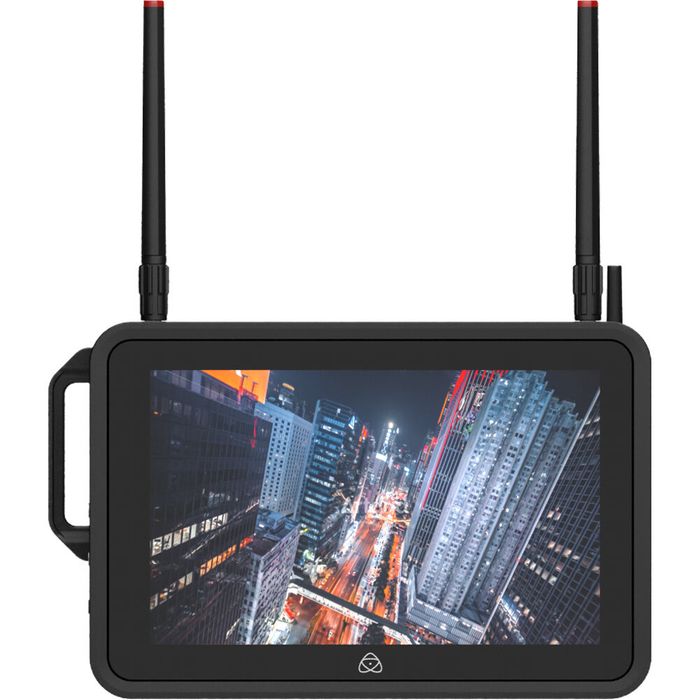

Atomos Shogun Connect 7-inch On-Camera HDR Monitor Recorder & Streamer
Description
Featuring a super bright 7-inch 2000nit screen and multiple recording options, Shogun CONNECT provides a premium experience for HDR monitoring and RAW recording. In addition, it includes loop-through and cross-conversion functionality via its 12G SDI-IN and OUT interface. Shogun CONNECT supports SDI RAW inputs up to 6K at 30fps. It can simultaneously loop out standard YCC video via SDI and HDMI to multiple non-RAW compatible devices. It also transforms digital cinema, mirrorless, and DSLR cameras into devices that support a range of advanced cloud-based workflows.
Key Features:
- Our most powerful device for monitoring and recording
- Compatible with a wide range of digital cinema, mirrorless, and DSLR cameras
- Professional video connectivity including 12G-SDI, HDMI 2.0
- Monitor up to 8K HDR sources and use AtomOS tools to perfect every shot
- Record in a range of professional formats including Apple ProRes RAW, Apple ProRes, Avid DNxHD/HR, or HEVC (H.265)
- Includes full support for Atomos Cloud Studio
- Wireless remote control the AtomRemote app
- Livestreaming to a range of online services including, Facebook Live, Twitch, YouTube, and custom RTMP/S
Redesigned Touchscreen:
The new 7-inch, daylight-viewable, highly-responsive SuperAtom IPS touchscreen is perfect for outdoor use, even in direct sunlight. All the controls are there to perform the adjustments necessary to allow Shogun CONNECT to function equally well in darker environments.
A Complete Monitoring Toolbox:
Shogun CONNECT offers a comprehensive range of monitoring tools including a waveform, focus peaking, false color, and frame guides to help you get the composition and exposure exactly right. The AtomOS software is so easy to use and the control it provides over your images for exposure, framing or focus.
Powered for the Future
Shogun CONNECT is built around the latest ATOMOS silicon, the AtomIC3. The processor provides all the performance to handle the demands of the very latest cameras. It can manage higher frame rates and increased resolutions. Currently the device supports the RAW output of various cameras up to 4K at 120fps via HDMI or SDI, with 8K ProRes RAW recording of up to 30fps exclusive to certain cameras.
Wireless Timecode
Atomos AirGlu™ adds wireless timecode, sync, and control technology to Shogun CONNECT. AirGlu locks multiple Atomos devices or compatible cameras, audio recorders, and software applications together so that they share the same frame-accurate timecode. It is also able to relay recording, battery status, and disk capacity information.
Supported Resolutions & Frame Rates
To save space and support longer recordings, many cameras record compressed 4:2:0 8-bit video internally. If the camera is able to output video via HDMI, the quality can often be preserved in a 4:2:2 8-bit or 10-bit format. If you’re shooting Log footage, the ability to bypass internal compression will offer the best possible dynamic range. Shogun CONNECT also includes 12G-SDI input, the standard on high-end cinema cameras, including the Sony FX series, Panasonic EVA1, and Canon EOS C series.
Professional Codec Support:
With flexible options for industry standard formats and RAW codecs, Shogun CONNECT records visually lossless “hero” files that are ready for editing and proxy/sharable files that look great but are quick to upload.
HDR & LUTs
You can check exposure and focus, apply custom LUTs, and zoom the picture to examine specific details. Shogun CONNECT supports popular Log formats from ARRI, Canon, Fuji, JVC, Nikon, Panasonic, RED, and Sony. These can be used to preview SDR or HDR LUTs in real-time. You can load your own custom LUTs in .cube format into any of the 8 LUT slots for monitoring, loop out, or burnt in to the recording. Simply select LUT (*.cube) files from the removable SSD.
