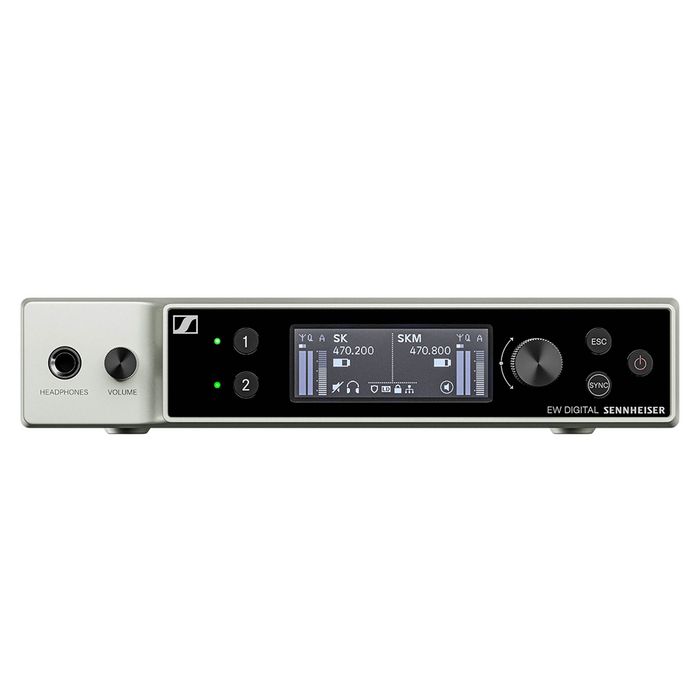

Sennheiser EW-DX EM 2 Half-rack 2-channel Receiver
Description
Two-channel digital half-rack (9,5") receiver for use with Evolution Wireless Digital handheld, bodypack and tablestand transmitters. Extended 88 MHz switching bandwidth, intermodulation-free operation for up to 293 channels with secure AES-256 encryption and redundant power supply via Power over Ethernet (PoE).
Items are also available individually, please contanct us to order.
Sennheiser EW-DX simplifies your professional workflow by utilizing refined technologies and decades of research to deliver a digital UHF system that can be scaled with ease. With its advanced feature set and hardware options, classrooms, corporate campuses, and live productions benefit from a network-ready system that is designed to integrate seamlessly. The system quickly assesses your environment and uses equidistant channel spacing to deploy frequencies while tools like Sennheiser’s Control Cockpit, Wireless Systems Manager, and Smart Assist App allow you to monitor your system remotely. In-device charging, 12-hour battery operation, and switching bandwidth up to 88 MHz are only a few more of the many features that make EW-DX the right tool for the job.
Features:
- Two-channel digital half rack (9.5") in rugged metal housing
- 134 dB input dynamic range - no need to set gain on your wireless transmitters at all, thanks to proprietary Sennheiser Performance Audio Codec (SePAC)
- AutoScan-feature quickly scans your environment and deploys frequencies with equidistant channel spacing - even without RF knowledge
- Secure transmission of confidential content using AES 256 encryption
- Function buttons - control all the transmitter settings directly from the handheld and bodypack including button lock function
- Persistent E-Ink display for "always on" information - parameters visible on-screen even when taking out batteries
- Equidistant channel spacing to easily allocate intermodulation-free channels: Standard Mode with 600 kHz spacing for up to 146 channels; Link Density (LD) Mode with 300 kHz spacing for up to 293 channels
- Low latency of 1.9 ms wireless transmission thanks to proprietary Sennheiser Performance Audio Codec (SePAC)
- Digital audio trim
- Sennheiser Standard Capsule Interface
- Compatible with a wide range of Sennheiser microphones with 3.5 mm connection (sold separately)
- Versatile charging options optionally available: CHG 70 N, L 70 USB, LM 6070 Module for L 6000 full rack charging station (Availability in 2023)
Truly simplified workflow:
EW-DX takes the complexities out of wireless audio by employing sophisticated tools that streamline the setup and monitoring process. With the press of a button, Auto Scan automatically assigns channels using an equidistant tuning grid that allows you to pack more channels more reliably, without problematic intermodulation interference. Take control of the system from your mobile device via the Sennheiser Smart Assist app or utilize advanced software options like Sennheiser Control Cockpit and Wireless Systems Manager (WSM) for a detailed system view in complex, networked environments.
Ready to scale, ready to deliver:
Evolution Wireless Digital is a system that evolves with you. Choose from multiple hardware options, including 2-channel half-rack (9,5") or 4-channel full-rack (19") receivers to right-size your needs today, while keeping expansion open for tomorrow. Dante® network audio, Ethernet control ports, and AES-256 encryption allow EW-DX to be securely transmitted, allowing systems to be managed and flex as needs change. Activate Link Density Mode to pack even more channels in a dedicated space and take full advantage of interchangeable series components across the Evolution Wireless Digital line. A wide range of accessories to manage power and signal distribution give you the options you need to build a system you can count on.
