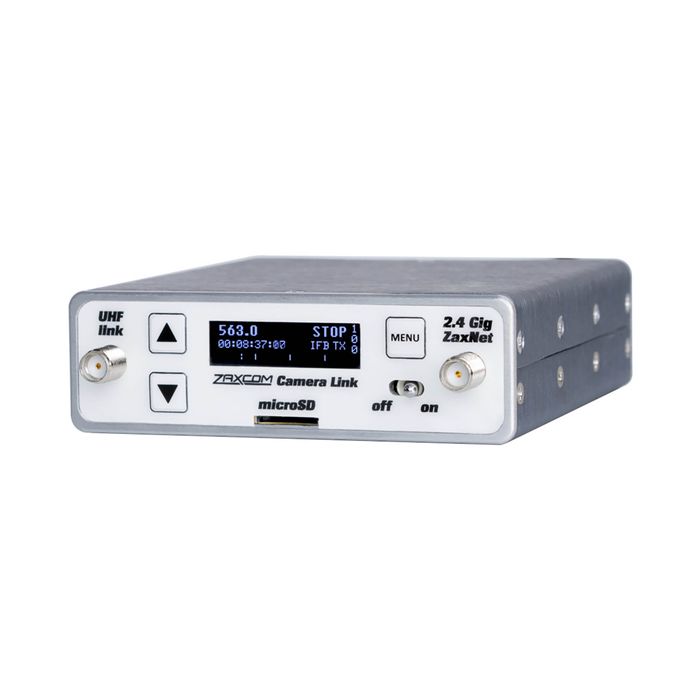

Zaxcom TRXCL5 Camera Link

POA
Stock Code:
77465
Enquire for ETA

Description

The Zaxcom TRXCL5 Camera Link is a wideband digital camera-link (camera hop) transmitter for use in film, television, and ENG applications. The TRXCL5 features internal recording, encrypted audio, timecode, ZaxNet™ functionality, and more. The TRXCL5 also provides compatibility with Zaxcom High Density (ZHD). Weighing only 7.3 ounces (0.2 kg), the CL5 offers professional sound quality with a compact, ultraportable, durable design.

The TRXCL5 sends audio (with embedded timecode) to camera over UHF signal via any of these Zaxcom receivers: QRX200, RX200, QRX235, and the MRX414 / RX-4 combo. In addition, the CL5 can send “scratch track” audio + timecode via ZaxNet’s 2.4 GHz signal to an ERX3TCD receiver. Plus, the CL5 can send remote control commands to any Zaxcom digital recording wireless transmitter.

A TA5 audio input offers balanced stereo line level or sample rate converting AES. The BNC connector provides timecode-in.

Furthermore, the TRXCL5 includes an RS422 port for direct connection to the Zaxcom GUI Bridge, so you can easily set it up with the URX50 (or URX100) and remote control your wireless via any device that can access the internet.

ENCRYPTED AUDIO
The TRXCL5 transmits using 100% digital modulation and audio is fully encrypted to keep recordings private.

INTERNAL RECORDING
The CL5 allows audio to be simultaneously transmitted and internally recorded to a microSD card using lossless MARF (Mobile Audio Recording Format), which eliminates file corruption common to recordings due to loss of power or early card removal.
Better Workflow

The TRXCL5 includes the ability to limit intermodulation, which can occur when multiple transmitters come close to each other and mix together.

MHZ BANDS AND POWER OUTPUT
In the United States, the TRXCL5 runs in the following frequencies and power outputs: 512.0 to 607.9 (up to 100 mW); 614.1 to 615.9 (20 mW); 653.1 to 662.9 (20 mW)
Globally, the TRXCL5 runs between 512.0 – 698.0 MHz
