Glensound Single Channel Headset Interface
Description
GLENSOUND BROADCAST INTERCOMS - 4 wire and IFB
Intercoms using 4-wire topography are often used in broadcast environments, particularly in outside broadcasting, where the simplicity of the wiring simplifies the connection of an ad-hoc or semi-permanent system to communicate between personnel and, with IFB, provide cue to operators and presenters. The models in this selection are all designed to inter operate with equipment using standard broadcast operating levels and connectors. They range from a single-circuit belt-pack for use with headphones to six circuit, rack-mounting intercoms, with integrated loudspeaker and talkback microphone.

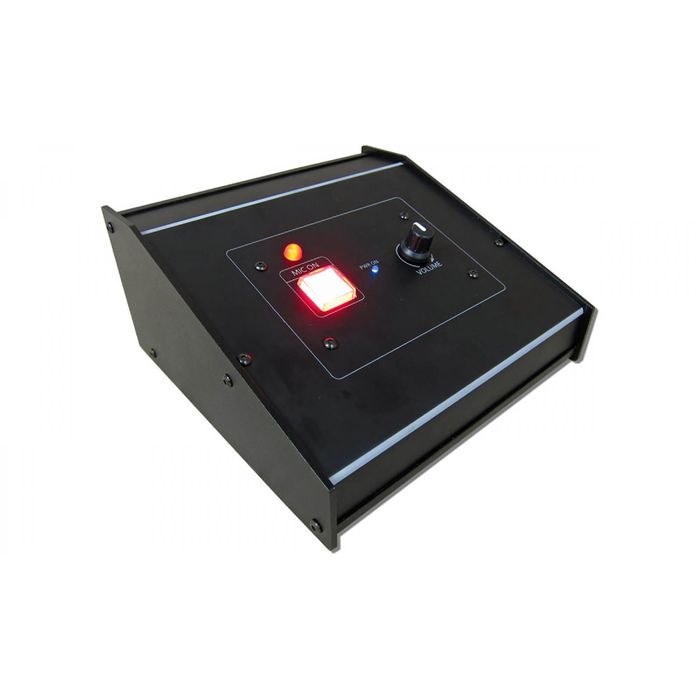

GS-FW035 - 1x 4W circuit
A single-user, desktop headset interface with large illuminated push-to-talk (PTT) button. A single switch can be programmed to operate PTT, cough, or on/off functionality whilst a rotary controller offers volume adjustment. The rear panel host 4-wire and microphone inputs via 3-pin XLR, and switched and lazy outputs via 3-pin male XLR connections. 32-1000ohm headphone output is via 6.35mm jack socket, and 100-240V 50/60Hz mains input is via IEC connection.
Features:
- Large illuminated Push To Talk (PTT) switch
- Switch can be programmed to operate in different ways (PTT, Cough, On/ Off)
- Balanced 4-wire output
- Balanced Lazy output (always on)
- Clear communications microphone amplifier
- Rear panel preset style mic gain control
- Compressor/ limiter after microphone amplifier
- Variable sidetone (via internal preset)
- Balanced 4-wire input
- Preset 4-wire input gain control
- 6.35mm headphone output
- Suitable for 32 - 1000 Ohm headphones
- Mains powered 100-240 VAC
- 170 x 170 x 80mm (W x D x H)
- 0.74 Kg
- Anodised laser etched aluminium panels
