Glensound Triple 4 Wire To 2 Wire 1U Rack
Description
GLENSOUND BROADCAST INTERCOMS - 4 wire and IFB
Intercoms using 4-wire topography are often used in broadcast environments, particularly in outside broadcasting, where the simplicity of the wiring simplifies the connection of an ad-hoc or semi-permanent system to communicate between personnel and, with IFB, provide cue to operators and presenters. The models in this selection are all designed to inter operate with equipment using standard broadcast operating levels and connectors. They range from a single-circuit belt-pack for use with headphones to six circuit, rack-mounting intercoms, with integrated loudspeaker and talkback microphone.

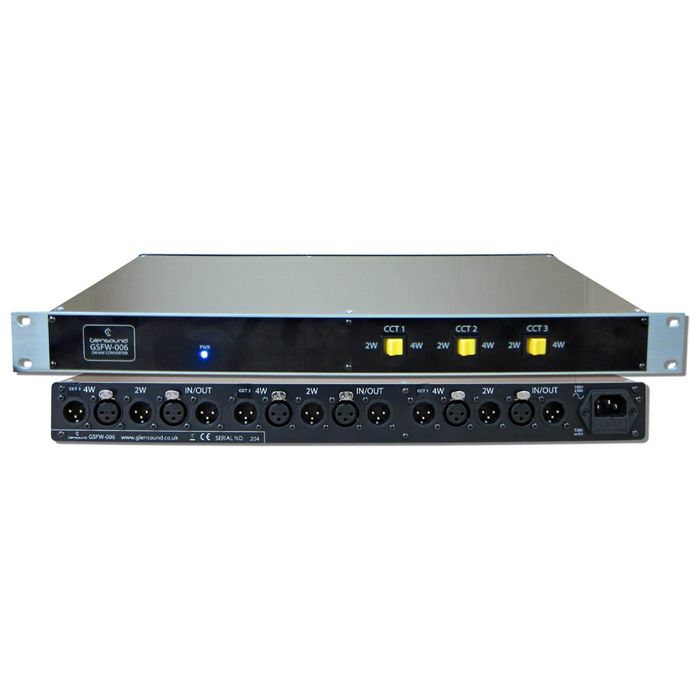

GS-FW006 - 3x 4W circuits - Rack mounting
This is contained in a 1U rack mounting case, and has three primary 4-wire circuits on the rear. Each primary circuit has an associated 2-wire connection and a secondary 4-wire circuit on the rear. Three switches on the front panel route the primary 4-wire circuit to either the secondary 4-wire circuit or the 2 wire connection. Power: 230V AC nominal, rear IEC inlet.
Features:
- Three balanced XLR input/ output circuits
- Three XLR 2-wire circuits
- Three XLR balanced 4-wire circuits
- All inputs and outputs on XLR
- 1u 19" rack
- Powered by mains
