Glensound 10 Channel 4 Wire Subrack & Integral Matrix Mixer
Description

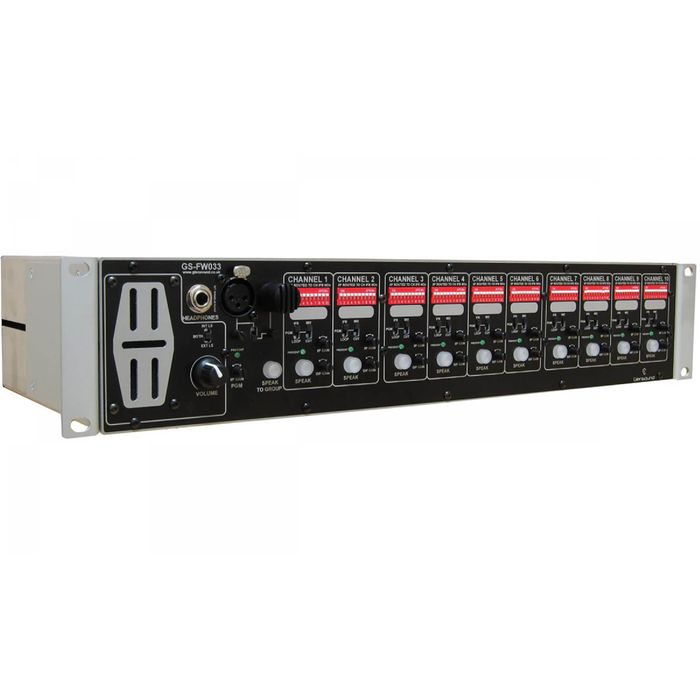

The GS-FW033 is a 2RU 19 inch subrack designed to be the communication hub in small OB vans and studios. The GS-FW033 differs from many of our other 4-wire units by including a talkback matrix mixer, this makes it a very powerful device capable of setting up complex IFB circuits to each of 10 outputs.
The unit also features our new brightly illuminated talkback switches. These give a quick indication of the channels on state and can easily be programmed to operate in a latching, momentary or intelligent lever key mode. The use of these talkback switches also allows a fully programmable talk to group switch to be present, where by straightforward programming a group can easily be set up for the operator to talk to at the press of a single button.
Being initially designed for installation in OB vehicles the unit features a 12V DC input power supply. If requested a mains power supply can be fitted as an alternative to the 12V DC during manufacture.
Features:
- 10 Channel 4 wire Subrack
- Integral matrix mixer
- Fully programmable talkback keys
- Programmable talk to group key
- Illuminated talkback keys can be easily programmed to alter operation mode (latching, momentary, latching & momentary (intelligent lever key))
- Channel input & output gain controls
- IFB feeds mixes can be set up from any of the inputs to any of the outputs
- Front panel mic & loudspeaker
- External LS feed
- Front panel XLR for gooseneck mic
- Individual gain controls for both microphones
- Glensound 'Referee' compressor/ limiter circuits on mic amps
- Headphone Jack (cuts LS)
- Programme input
- Audio presence detectors on all inputs
- External loop inputs for remote control of talkback circuits & LS Dim & LS Cut
- External solid state relay loop outputs from individual talkback buttons & 1 global circuit
- 12V DC powered
- Optional mains input powering to replace 12V DC input
- Audio input/ outputs on standard 3 pin XLRs
- Matrix switches route a channels input to any of the 10 channel outputs
- 4 wire inputs can be looped to 4-wire outputs via Matrix (IFB)
- PGM input can be routed to 4 wire outputs
- PGM inputs & IFBs can be mixed or cut when talkback keys are operated
- Front panel switches for routing PGM & IFB & selecting mix/cut operation
- Balanced external LS output (0dB0
- Front panel LS/ Headphone volume control
- Transformer balanced inputs
- Highly reliable electronic 'transformer' balanced outputs
