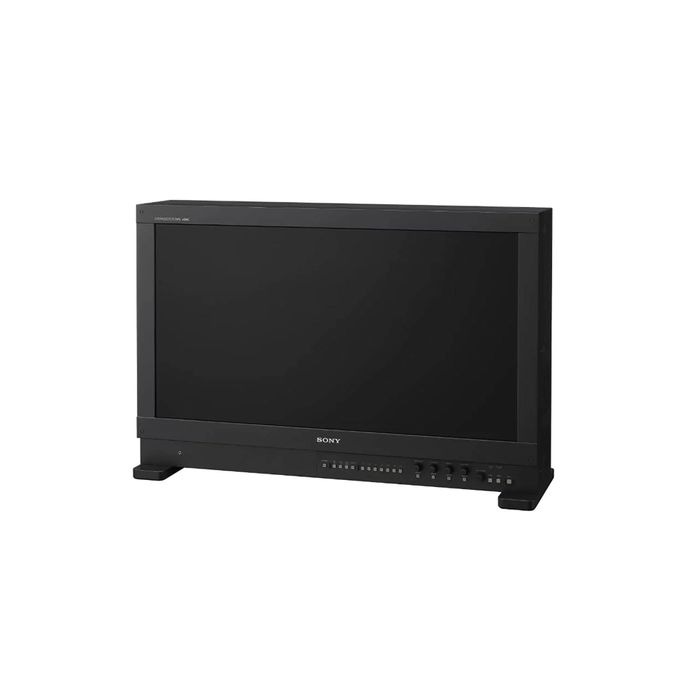

Sony BVM-HX3110 30.5-inch 4K Trimaster HX Pro Monitor
Description
Experience sharp details and rich colours with the BVM-HX3110 TRIMASTER HX™ 4K Professional Master Monitor. Combine IP connectivity with incredible 4K HDR picture quality, from deep shadows to bright highlights. Choose a master monitor that’s perfect for live productions, colour grading and VFX.
Higher peak luminance and greater contrast ratio:
As a 4K HDR master monitor, the BVM-HX3110 is designed for unparalleled colour fidelity. *Peak luminance has been increased to 4000 cd/m² while the black colour stays black. Colourists will see subtle details, delicate highlights and rich colours, even in areas of the image where details were previously lost, with deep blacks and smooth highlight roll-off.
*This peak luminance value is typical at D65 (x, y = 0.3127, 0.329) and is not guaranteed. Auto brightness limiter may work under some conditions.
Even wider viewing angles:
Undertake monitoring work with more people, thanks to a wider viewing angle. Reviewing our optical display materials has allowed us to expand the viewing angle of our newest master monitor to 45°, without affecting the rich contrast ratio or high colour fidelity.
Improved reflection performance:
Advanced AR processing takes care of reflections so users can concentrate on their production work. This technology cancels out incoming ambient lights to the screen through optical wave cancellation that’s similar to noise-cancelling audio technology. That means better contrast, better black reproduction and a clearer image with minimal resolution degradation.
Integrated IP support:
Slot seamlessly into IP productions, with support for ST2110-20/21/22/30/40, NMOS IS04/IS05, Clean Switch, Hitless Failover, and PTP. A web menu makes IP interface configuration simple and it’s easy to add licences to support both SNMP and JPEG XS decoder. Direct IP signal input also removes the need for an IP-SDI converter, saving space and a number of power outlets. Plus we’ve incorporated greater compatibility with Sony’s Networked Live ecosystem.
TRIMASTER HX:
TRIMASTER™ Technology is a design architecture that elicits the full performance capabilities of professional flat-panel displays. Its core technologies deliver the highest levels of colour accuracy, precision imaging, and picture-quality consistency, enabling the BVM-HX3110 to achieve the precise imaging that professionals trusted in the BVM-HX310. Meanwhile, the BVM-HX3110 features a Sony-designed dual layer anti-reflection LCD panel with Sony proprietary signal processing, supporting higher peak luminance, faster pixel response and wider viewing angles.
Other features:
- Gamut Marker
- Automatic setting by (VPID Video Payload ID) with single link input for switching between 4K HDR to HD SDR
- Interlace mode
- Auto white adjustment
- Audio level meter display
- Relative contrast function(1/2, 1/3, 1/4, 1/8)
- Aspect ratio markers, area markers, centre markers and grid false colour function
- Camera focus function
- Copy function for internal monitor setup and matching to additional unit
- Closed caption display
- Chroma up function for easy setup of cameras (calibration, lens check)
- In-monitor display (IMD)
- Zoom function
- Mono, blue Only, RGB cut off
- Internal signal pattern
- Timecode display
- User presets with password lock
- Power-on setting and key inhibit
- Anti-fingerprint
- Made from recycled plastic
- Quad view display
- User 3D LUTs
- 4K/HD scopes with HDR/SDR scale
- HDR-SDR converter function (activated by an optional licence
- Faster pixel response (activated by an optional licence)
