AJA T-TAP-Pro 12G-SDI & HDMI V2.0 Out 4K/HD cw 12/10-BIT HDR
Description
T-TAP Pro is the newest generation of AJA’s proven T-TAP, featuring the latest 12G-SDI and HDMI 2.0 connectivity for working with up to 4K or UltraHD 60p video over a single cable. This allows for easy output of deep color, high frame rate, SDR and HDR video to a wide range of pro and consumer monitors and devices, all at the highest 10- and 12-bit quality. T-TAP Pro is a compact, silent device that delivers next generation mobile monitoring capabilities to any supported Thunderbolt 3 enabled system.
Key features:
• 12G-SDI and HDMI 2.0 connectivity for working with 4K or UltraHD over a single cable up to 60p
• SDI output supports 12G-SDI, 6G-SDI, 3G-SDI, 1.5G-SDI and 270Mbit
• 4K/UltraHD/2K/HD/SD Output/Monitoring up to 50/60p
• 1x 12G-SDI BNC with 16-channel embedded audio
• 1x HDMI 2.0 with 8-channel embedded audio
• 1x Thunderbolt 3 connector
• Compact, silent, mobile form-factor with Front-panel Audio Levels Reference Display
• RGB 4:4:4 12-bit, YCbCr 4:2:2 10-bit and HFR workflows supported
• 12-bit and 10-bit LUT support (.cube)
• 4K Closed Caption Support
• VPID signaling for SDR/HDR Transfer Characteristics, Colorimetry and Luminance via SDI
• PQ, HLG, HDR10, HDR 10+ and Dolby Vision Support
• HDR Metadata Auto Playback Detection
• Includes support for the Apple M1 chip
• Compatible with OBS Studio, Telestream Wirecast, Adobe Creative Suite, Apple FCP, Avid Media Composer, and many more
• Headphone jack and quick access audio level control for mobile or live environments
• Thunderbolt, Power and Bitfile Connection Status Indicators
• Apple M1 Chip Support
• Power Supply Included
• 3 Year Warranty
Easy Integration:
T-TAP Pro offers immense power in a very small footprint and features industrial design for silent desktop operation. This workflow example shows T-TAP Pro at the heart of a feature rich system, with a host laptop providing Thunderbolt 3 connectivity between the two. Broad software support means that T-TAP Pro can output video from the timeline of your NLE or post production software simultaneously via the 12G-SDI and HDMI 2.0 outputs, here shown as an AJA Ki Pro Ultra 12G digital video recorder and a standard 4K/HDR compliant HDMI consumer monitor. Streaming content can also be enhanced, allowing an editor to share their NLE timeline output directly with viewers in real-time, at any resolution required up to 4K 60p via the appropriate third party software.
Flexible Audio Control:
With T-TAP Pro, a 3.5mm stereo analog audio connection is available on the front left of the device for headphone monitoring. This is an invaluable feature for editors or digital artists working from home, easily creating privacy with no compromise to performance. You're able to plug in headphones directly, or else route the signal to an external analog audio mixer for more options. T-TAP Pro provides an elegant solution to monitoring audio with off-the-shelf tools readily available, and also avoiding cumbersome dis-embedding.
As with other AJA Thunderbolt-connected devices, the monitor audio presented is selected via AJA Control Panel and is controlled via the Audio Setup Tab. Any pair of channels can be monitored from 1&2 to 7&8 up to 15&16 with a single click and selection. The diagram above shows the signal flow and control options for T-TAP Pro.

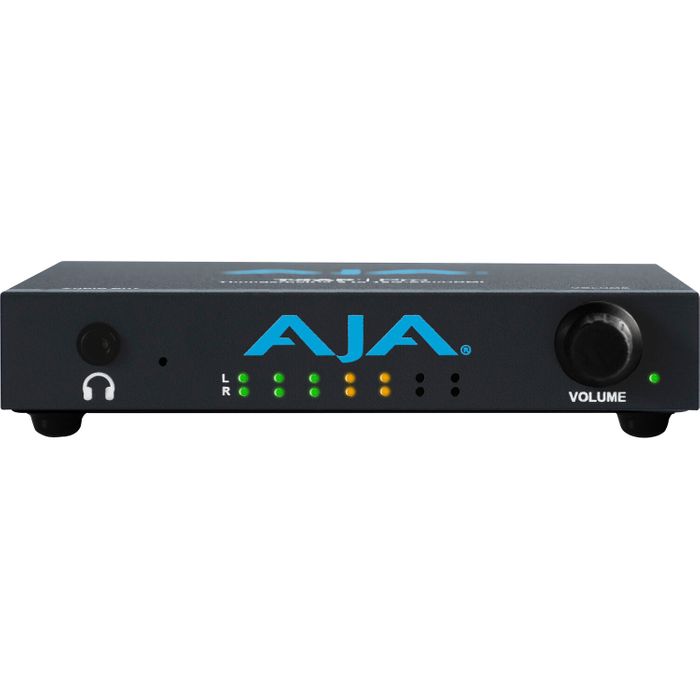

The front panel of the T-TAP Pro also features audio reference meters to further enhance it’s monitoring capabilities.
