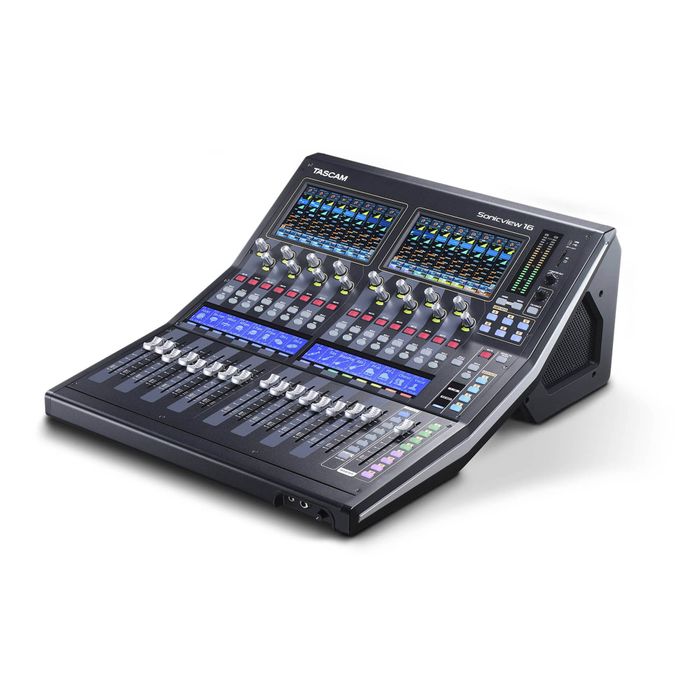

Tascam Sonicview 16 Channel Interactive Digital Mixing Station
Description
TASCAM Sonicview 16- Digital Mixer with Multi-environment Touch Screen
TASCAM Sonicview mixing consoles integrate beautifully with the rest of your system, thanks to built-in Dante networking, a 32-bit/96 kHz multi-channel USB audio interface, and plenty of I/O. No-compromise audio quality, including 54-bit float-point FPGA mixing, combines with ample signal processing, an expansion slot for additional connectivity, and wireless remote control to make TASCAM Sonicview mixers a next-generation choice for touring, installed sound, recording studios, and broadcasting.
The TASCAM Sonicview 16 offers motorized channel faders in two banks of eight, plus a motorized stereo fader for the main bus. Above each bank of channel faders is a color touch panel that allows you to view entire mixer channels, or get down to details, controlling each parameter with your fingertip.
Thanks to the VIEW user interface, there are three different ways to view your settings, and each touch screen can be configured independently, so you can monitor and control any combination of settings you want, in whichever screens you want, whenever you want. For instance, you could monitor levels for eight channels of vocals on screen 1, while tweaking the parametric EQ on a drum submix on screen 2.
TASCAM Sonicview delivers the finest audio performance in its class, thanks to a 54-bit float-point FPGA mixing engine; continuous, high-definition 32-bit/96 kHz sampling; and 32-bit analog-to-digital converters. The mixing engine's float-point processing makes it possible to flexibly change levels without compromising resolution and FPGA mixing engine make it possible to ensures ultra-low latency, even in analog-to-analog connections. The result is no-compromises performance, including with Dante networks and in-line monitoring systems.
There's much more to TASCAM Sonicview than meets the eye. Internally, TASCAM Sonicview mixers have a generous 40 mono channels, 2 stereo and 4 stereo FX return channels channels so you can fly in backing tracks to make a small praise band sound huge, accommodate additional physical audio inputs via the expansion slots for larger ensembles, manage sources from every part of a venue via the Dante network, and mix dozens of DAW tracks. Eight DCAs enable you to easily control groups of channels. The programmable layer keys select which custom combination of channels and output buses are controlled by the motorized faders.
Key Features:
- The TASCAM VIEW (Visual Interactive Ergonomic Workflow) interface enables intuitive operation with three different view modes
- Multiple simultaneous views via two 7-inch color touchscreens
- 44 input channels (40 mono, 2 stereo)
- 22 flexible output busses plus stereo sum with 31-band graphic EQ
- FPGA-based mixing engine with 54-bit floating-point processing and 96 kHz sampling rate
- Ultra-low latency: 2 × Fs (20.8 µs) in mixing engine, 0.51 ms analog-to-analog
- 32-bit, 96 kHz A/D and D/A conversion
- Tascam HDIA (High-Definition Instrumentation Architecture) microphone preamplifier
- Built-in Dante interface (64 inputs/outputs); supports redundancy, AES67, DDM and SMPTE 2110
- USB audio interface with 32 inputs and outputs at 32-bit and 96 kHz
- 16 mic/line inputs (up to +32 dBu), 16 XLR line outputs with flexible routing
- Four multi-effects processors
- Tascam Sonicview for Windows, macOS and iOS allows remote control and offline editing
- Two Tascam expansion slots
