CB Electronics XPatch-32 Custom
Description
XPATCH-32 CUSTOM 32 x 32 DIGITALLY CONTROLLED ANALOGUE AUDIO PATCH BAY
Customise XPatch with Line with Gain, Hi-Z & Mic Boost cards when ordering unit (All Cards)
There are 4 input cards, each input card has 8 channels, as standard only one of the input cards has gain. You can chose the type of each input card.
CB Electronics introduces XPatch-32, designed by multi-award-winning designer Colin Broad. XPatch-32 is a 32x32 digitally controlled, fully analogue audio patch bay routing system for audio professionals and aimed at streamlining workflow in even the most demanding post or music studios.
The XPatch-32 system is controlled by our XPatch-32 program via USB, allowing for complex routings in seconds. Create, store and recall routings from sessions. Any input can be sent to multiple outputs. The XPatch-32 design is based on the A-Mon / I-Mon and shares the I/O and CPU cards, allowing for input and output muting and even gain control.

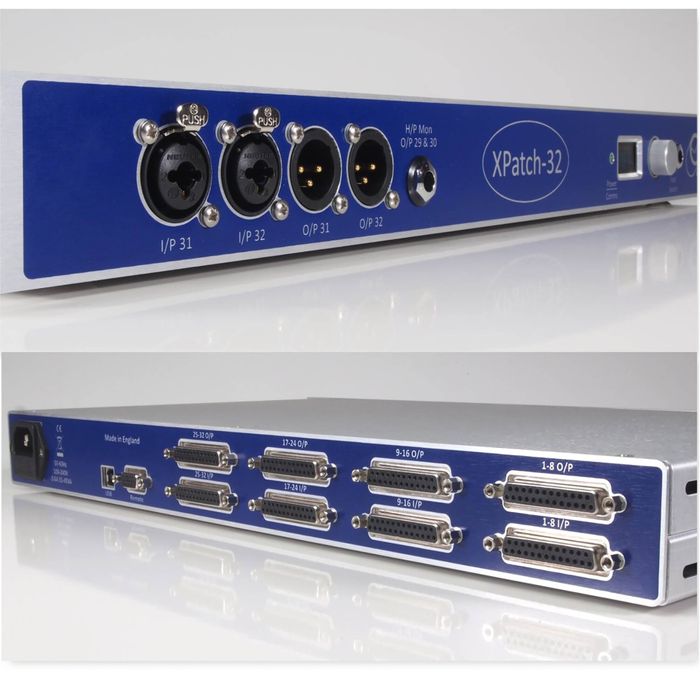

The front panel is equipped with 2x XLR combo connectors for input XLR line-level / ¼ inch jack DI input, plus 2 XLR output for quick auditioning of equipment. Also included are ¼ inch jack for headphone monitoring of inputs and outputs, OLED display and encoder with push button for function selection. In addition, there is a ¼ inch jack socket for a switch to step through snapshots (presets).
Once configured, XPatch-32 can operate independently of the XPatch-32 program and host computer via the front panel encoder or foot-switch. By switching between snapshots, the foot-switch enables the XPatch-32 to be used as a powerful studio or live performance tool for musicians.
In any studio, the XPatch-32 can make it quick and easy to use your favorite new and legacy hardware effect’s units in your mix.The XPatch-32 is a versatile stand-alone analogue routing/switching system for on-stage boutique instrument processing or amplifier selection.
Key Features:
- 32x32 crosspoint routing
- Zero crossing switching ("Click-Less")
- 2 Input combo XLR line level/ 1/4 inch jack DI input
- 2 output front panel XLR connections
- Front panel headphone monitoring
- Create, store and recall routings
- Any input can connect to multiple outputs
- OSX and Windows compatible software
- Software and firmware updates via USB
- 8 channels of metering
- Gain control on every input and outputs 25-32
- 5 Pin MIDI input
- I/O on DB-25 connectors - Tascam format
- Unused I/O are muted to minimise crosstalk
- Footswitch input or selection of snapshots (pre-sets)
- Designed by CB Electronics multi-award-winning designer Colin Broad
- Load and save predefined signal paths
- Connect a TMC-1 or TMC-2 to use as a monitor controller with electronic patch
