CB Electronics XPatch-96
Description
CB Electronics XPatch-96 - 96 x 96 Digitally Controlled Analogue Audio PatchBay. Control Analog Audio routings right from your computer with the XPatch-96 program. CB Electronics introduces XPatch-96, designed by multi-award-winning designer Colin Broad. XPatch-64 is a 64x64 digitally controlled, fully analogue audio patch bay routing system for audio professionals and aimed at streamlining workflow in even the most demanding post or music studios.
The XPatch-64 system is controlled by our XPatch-64 program via USB, allowing for complex routings in seconds. Create, store and recall routings from sessions. Any input can be sent to multiple outputs. The XPatch-96 design is based on the A-Mon / I-Mon and shares the I/O and CPU cards, allowing for input and output muting and even gain control.

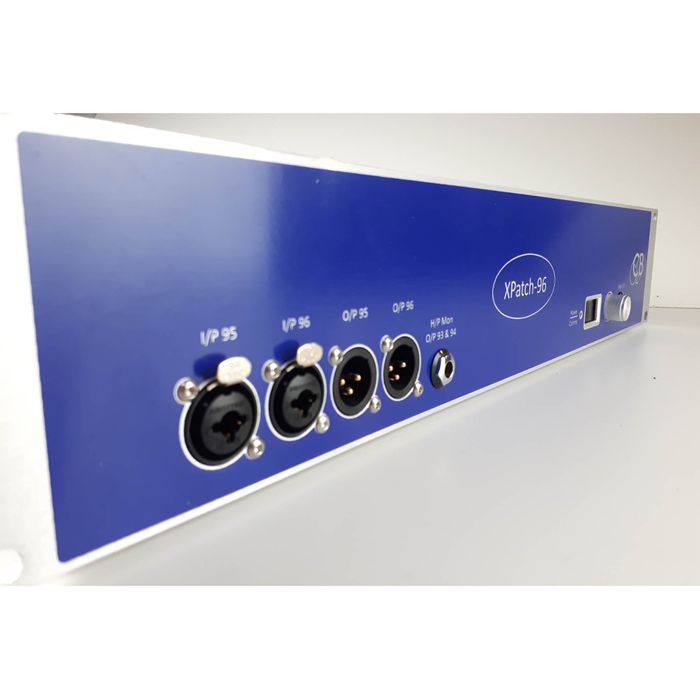

The front panel is equipped with 2 XLR Combo connectors for input XLR line-level / ¼ inch jack DI input, plus 2 XLR output for quick auditioning of equipment. Also included are ¼ inch jack for headphone monitoring of inputs and outputs, OLED display and encoder with push button for function selection. In addition, there is a ¼ inch jack socket for a switch to step through snapshots (presets).
Standard Configuration:
- Inputs 1-88 Line
- Inputs 89-96 Line with Variable Gain
Key Features:
- 96 x 96 Crosspoint-routing
- Zero crossing switching (Click-less)
- 2 Input Combo XLR line level / ¼ inch Jack DI input
- 2 Output front panel XLR connections
- Front panel headphone monitoring
- Create, store & recall routings
- Any input can connect to multiple outputs
- OSX & Windows compatible software
- Software and Firmware updates through USB
- 8 Channels of metering
- Gain control on every output & Input 89-96
- 5 Pin MIDI input
- I/O on DB-25 connectors - Tascam format
- Unused I/O are muted to minimize crosstalk
- Footswitch input for selection of snapshots (Presets)
- Designed by CB ELECTRONICS multi-award winning designer Colin Broad
- Load and save predefined signal Paths
- Connect a TMC-1 or TMC-2 to use as a monitoring controller with electronic patch
