CB Electronics XPatch-96 Custom
POA
Stock Code:
151067
Enquire for ETA
Description
XPATCH-96 CUSTOM - 96 x 96 DIGITALLY CONTROLLED ANALOGUE AUDIO PATCH BAY CONTROL
There are 12 input cards, each input card has 8 channels. You can chose the type of input card for a maximum of 4 card slots.
Key Features:
- 96 x 96 Crosspoint-routing
- Zero crossing switching (Click-less)

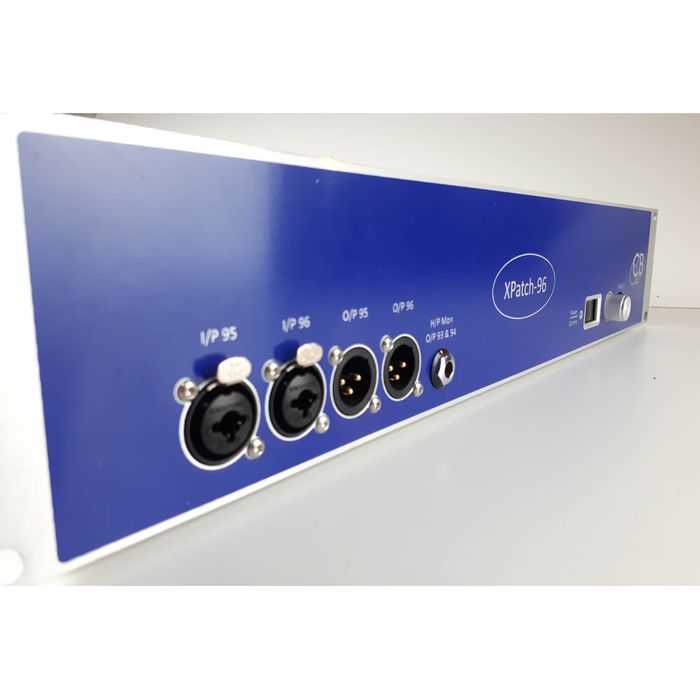

- 2 Input Combo XLR line level / ΒΌ inch Jack DI input
- 2 Output front panel XLR connections
- Front panel headphone monitoring
- Create, store & recall routings
- Any input can connect to multiple outputs
- OSX & Windows compatible software
- Software and Firmware updates through USB
- 8 Channels of metering
- Gain control on every output & Input 89-96
- 5 Pin MIDI input
- I/O on DB-25 connectors - Tascam format
- Unused I/O are muted to minimize crosstalk
- Footswitch input for selection of snapshots (Presets)
- Designed by CB ELECTRONICS multi-award winning designer Colin Broad
- Load and save predefined signal Paths
- Connect a TMC-1 or TMC-2 to use as a monitoring controller with electronic patch
