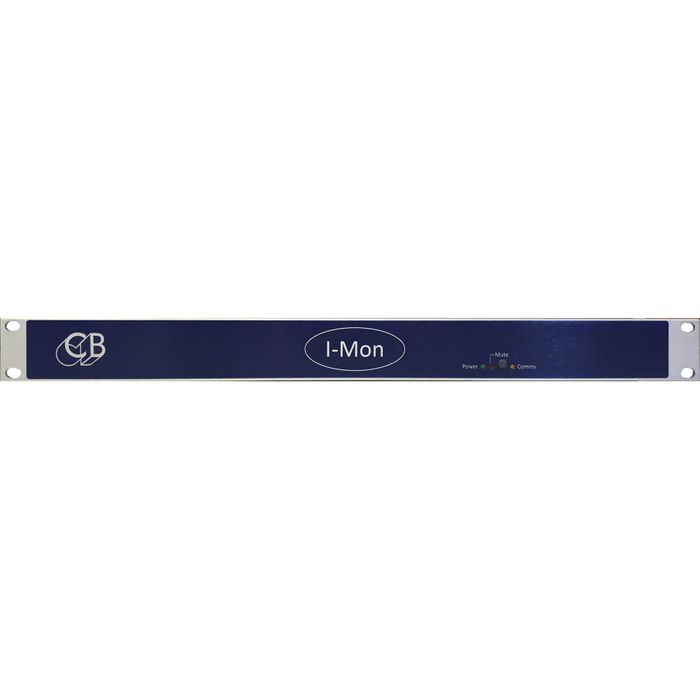

CB Electronics I-MON Analogue Monitor Controler
POA
Stock Code:
151075
Enquire for ETA
Description
Based on the A-Mon the I-Mon immersive analogue monitor control unit is housed in a 1U rack mount box. Designed for any format from stereo to 12 or 14 channel immersive audio. This versatile unit is designed to provide a cost effective solution to installing immersive monitoring in smaller studios. The I-Mon may be configured with either 12 or 14 channel Main input and Main output and with either 1 or 2 talkback and listen mic inputs.
Key Features:
- Inputs: 1x 7.1.4, 1x 7.1, 2 x Stereo plus 2 or 3 stereo Cue Inputs
- Cue inputs available on cue sends and main outputs
- Four Cue outputs - Studio L/S, Headphones, Cue1, Cue 2
- Three Control Room speaker selections
- One/Two Listen back microphone inputs
- One/Two Talkback microphone inputs
- External Meter Feed (Option)
- Stereo Down Mix Output
- 34 Inputs 27 Outputs
- Stereo AFL Input
- Slate output
- Input Sum
- GPIO
Available:
- I-MON Only
- I-MON + TMC-1 Bundle
- I-MON + TMC-2 Bundle
