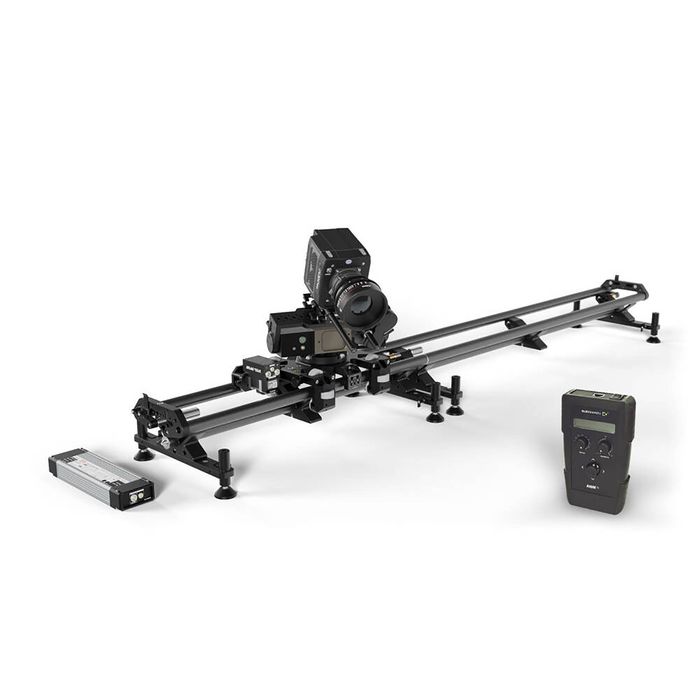

MRMC Slidekamera ATLAS MOCO - Monohead Studio Kit
Description
SLIDEKAMERA Atlas Slider & Monohead Studio Set 2m - MRMC-HSM-1, HKN-4v4, HGN-14v2, AION IQ, HPB-1
KEY FEATURES:
- Versatile modular slider with 1-axis remote head
- Powered by reliable stepper motors
- Designed for professional cameras up to 16kg
- SLIDER comes with 0.8m and 1.2m sections, but 2m and 3m sections are also available. The maximum recommended length is 12 meters
- Easy & Quick Mounting
CONSTRUCTION
The truss construction guarantees strength and rigidity of the set in all directions and allows to mount a standard 2m rails set on two tripods without any deflection.
MODULARITY
ATLAS MODULAR SLIDER comes with 0.8m and 1.2m sections, but 2m and 3m sections are also available. The maximum recommended length is 12 meters.
The modular system is designed to be assembled and disassembled without any tools.
Each section is equipped with feet, that can be easily and quickly adjusted to any surface. You can perfectly level the set on the ground in no time.
SIDE BRACKETS
The side brackets come with magnetic bumpers. When you use your slider manually, they act as brakes. If the cart approaches the end of the slider, they prompt you about the incoming end of the working range. This allows you to focus on capturing the best image, instead of worrying about the remaining range of the slider.
ATLAS MODULAR DOLLY MK2
12 custom designed wheels for high stability
Perfect motion at any angle: horizontal, vertical or upside down
A wide range of camera mounting options
75/100/150 mm bowl with adjustable distance pins
Plate with 3/8" screw
1/4" and 3/8" mounting ports
Magnetic bumpers for smooth operation
MONOHEAD STUDIO
Precise rotation of the camera in one axis
High precision and repeatability
Redesigned gearbox - increased payload and stability
Rotation speed up to 73ยบ/s
Max load capacity: 16 kg
ATLAS MODULAR DRIVE
Silent motion
Max speed 0.4 m/s
High precision and repeatability
High-quality connectors
AION IQ
AION IQ is the basic controller that works with 2-axis setup, e.g. the slider and MONOHEAD STUDIO. It offers all standard modes:
Live
Loop
Record/Playback
Timelapse
Animation (stop motion)
For shooting interviews or recording live shows, MONO HEAD STUDIO is a perfect solution that automates the camera's motion. The PARALLAX feature ensures that the filmed object will remain in the right spot in the frame. You don't have to worry about the parallax effect or missed compositions.
EASY & QUICK MOUNTING
Self-adjusting adapters for 75/100 mm bowl sockets
3/8" universal mount
- Camera is not included.
ATLAS MOCO - MONOHEAD Studio Kit - Includes: x1 0.8m ATLAS rail section, x1 1.2m ATLAS rail section, x2 ATLAS end brackets with magnetic bumpers, x1 ATLAS modular Dolly MK2 with damping and brake knobs, x1 Flat mounting plate with 3/8" thread, x2 Short locking handles (M10 and 3/8") x1 V-Mount Adapter & Plate Set, x1 ATLAS Stepper Motor Drive, x1 2m Timing Belt, x1 5m LEMO Power Cable for stepper motor drive, x1 MONOHEAD STUDIO, x1 AKC-3 Quick Release Mounting Plate, x1 1.5 m LEMO Power Cable for MONOHEAD STUDIO, x1 MONOHEAD STUDIO Transport Hard Case, x1 AION IQ Controller, x1 3m mini-LEMO control cable, x1 PSU185 Power Supply (185w), x1 110v/230v Power Cable. Items such as Cable Guides, Cables, Tripods, Transport Case, Quick Mount and Drives are also available.
