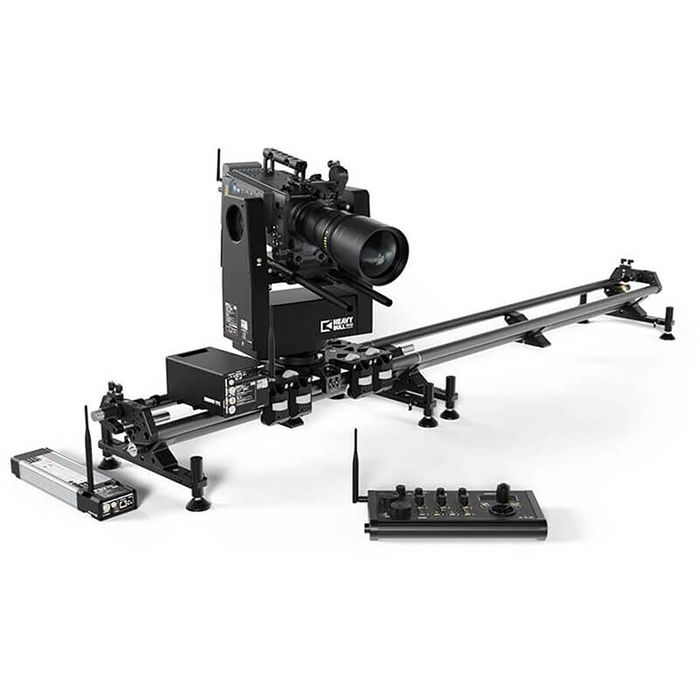

MRMC Slidekamera ATLAS MOCO - Heavy Bullhead Servo Motors Kit
Description
MRMC Slidekamera Atlas Slider & Heavy Bullhead Set 2m - MRMC-HSM-1, HSN-2v4(A), HGN-10v2, HPN-2v2, HPB-1
KEY FEATURES:
- High-performance modular slider with 2-axis remote head
- Powered by powerful servo motors
- Designed for heavy broadcast and cine cameras up to 20kg
- Easy & Quick Mounting
CONSTRUCTION
The truss construction guarantees strength and rigidity of the set in all directions and allows to mount a standard 2m rails set on two tripods without any deflection.
MODULARITY
ATLAS MODULAR SLIDER comes with 0.8m and 1.2m sections, but 2m and 3m sections are also available. The maximum recommended length is 12 meters.
The modular system is designed to be assembled and disassembled without any tools.
Each section is equipped with feet, that can be easily and quickly adjusted to any surface. You can perfectly level the set on the ground in no time.
SIDE BRACKETS
High-performance pneumatic brakes
Designed for fast setups
Easy to adjust
Integrated belt tensioner
ATLAS SERVO DRIVE
High performance servo motors
SILENT MOTION - perfect for features, live shows and interviews
Max speed up to 2 m/s
High precision and repeatability
Durable LEMO connectors
Suitable for long travels (up to 20m)
HEAVY BULLHEAD
New, powerful servo motors
High speed
Low noise levels
High payload - up to 20kg
ATLAS EXTENDED DOLLY
24 custom designed wheels for extreme stability
Perfect motion at any angle: horizontal, vertical or upside down
A wide range of camera mounting options
75/100mm bowl with adjustable distance pins
Plate with 3/8" screw
Height adjustment pins
1/4" and 3/8" mounting ports
Magnetic grips for accessories
Magnetic bumpers for smooth operation
Motion Control System is managed by the KAIROS Controller – a universal tool, that provides easy and intuitive control over the system.
EASY & QUICK MOUNTING
Self-adjusting adapters for 75/100 mm bowl sockets 3/8" universal mount
ATLAS MOCO - HEAVY BULLHEAD - SERVO MOTORS Kit - Includes: x1 0.8m ATLAS rail section, x1 1.2m ATLAS rail section, x2 ATLAS end brackets with pneumatic bumpers, x1 ATLAS EXTENDED Dolly, x1 75/100mm bowl adapter with distance pins, x1 Flat mounting plate with 3/8" thread, x2 Short locking handles (M10 and 3/8") x1 V-Mount Adapter & Plate Set, x1 ATLAS SERVO Motor Drive, x1 2m Timing Belt, x1 5m LEMO Power Cable for servo motor drive, x1 HEAVY BULLHEAD, x1 1.5m LEMO Power Cable for HEAVY BULLHEAD, x1 HEAVY BULLHEAD Transport Hard Case, x1 KAIROS Controller, x1 3m mini-LEMO Control Cable, x2 3m RJ-45 Network Cable, x1 USB-C Cable, x2 Wi-Fi antenna, x1 KAIROS Transport Hard Case, x1 PSU320E Power Supply (320w) with integrated SLIDELINK v3.0 network adapter, x1 110v/230v power cable. Items such as Cable Guides, Cables, Tripods, Transport Case, Quick Mount and Drives are also available.
