MRMC X Head Studio
Description

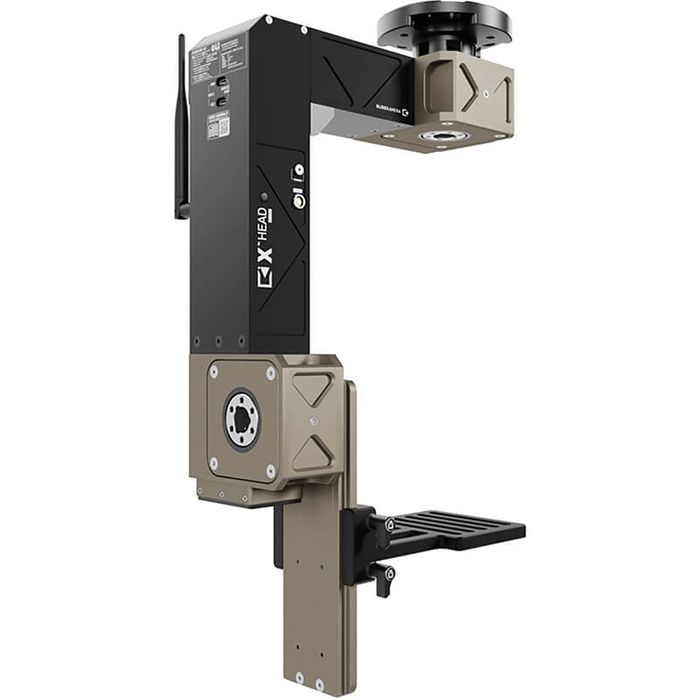

This reinforced version of reliable X-HEAD is designed to work in a professional studio environment. The heavyweight gearbox, previously used only in panorama axis has been applied as well in the tilt axis. The new X-HEAD STUDIO has increased payload capacity and higher stability for precise motion.
KEY FEATURES:
- 2-axis remote head (PAN, TILT) for jibs/cranes, dedicated for heavy, professional cameras up to 16kg
- Overslung and Underslung
- High-Quality Connectors
- Unified head mount, compatible with Slidekamera's heavy sliders, jibs and tripods
REINFORCED GEARBOXES
Strengthened housing and redesigned mechanics, apart from increasing payload capacity, makes this head more stable and less prone for vibrations. The new mounting bracket is suitable for large, broadcast and cine cameras.
OVERSLUNG AND UNDERSLUNG
The head is designed to work underslung (hanging down) on jibs, cranes, or overhang sliders, and this way it works best. Thanks to the reinforced gearboxes, it can also work overslung (upright) on tripods, sliders, etc.
Note that the rigidity of the system might be decreased and a payload capacity should be reduced in the overslung mode.
HIGH-QUALITY CONNECTORS
Our new lineup of devices uses heavy-duty LEMO connectors. The new design includes power and data connections in one cable, which allows you to work faster and safer - without tangling the unnecessary wires.
The connectors are compatible with a wide range of AC adaptors, from small chargers for one device to large power bricks with communication modules designed for big setups.
UNIFIED HEAD MOUNT
The X-HEAD STUDIO is equipped with our unified head mount, compatible with Slidekamera's heavy sliders, as well as our jibs and tripods. This ensures that the head is mounted firmly and allows to attach the unit safely in an upside-down configuration.
PDMOVIE - LENS CONTROL SYSTEM
The X-HEAD remote head is equipped in the Lens Control System port, which allows you to work with PDMOVIE lens motors. You can daisy-chain up to three drives and connect them directly to the head. You will have access to the lenses with the KAIROS controller. You can also use Dragonframe software or Slideye 2.0 on your Mac/PC (requires a Slidelink v3.0 adapter).
Optional AION 2D Controller
- Simple and lightweight
- Up to two axis (head only)
- Intuitive control with a joystick
- Adjustable speed and acceleration
- 3 memory banks to store and playback motion path
Optional KAIROS Controller
- Up to 6 axis
- Support for lens drives
- Dedicated inputs (knobs, joysticks) for all axes
- Adjustable speed and acceleration
- 8 memory banks to store and playback positions and motion paths
- Ethernet and Wi-Fi connection (requires devices with Slidelink v3.0)
- Frequent firmware upgrades - futureproof
Flexible head with 8KG payload over slung and 16KG payload underslung, max speed 72°/s. Includes: x1 X HEAD STUDIO, x1 Transport Hard Case for X HEAD STUDIO, x1 LEMO Cable for X HEAD STUDIO [Select cable length out of 1.5m (for ATLAS Modular), 2m (for TITAN 1000), 2.5m (For TITAN 1500), 3m and 5m] Controller and power supply not included and will need to be added.
