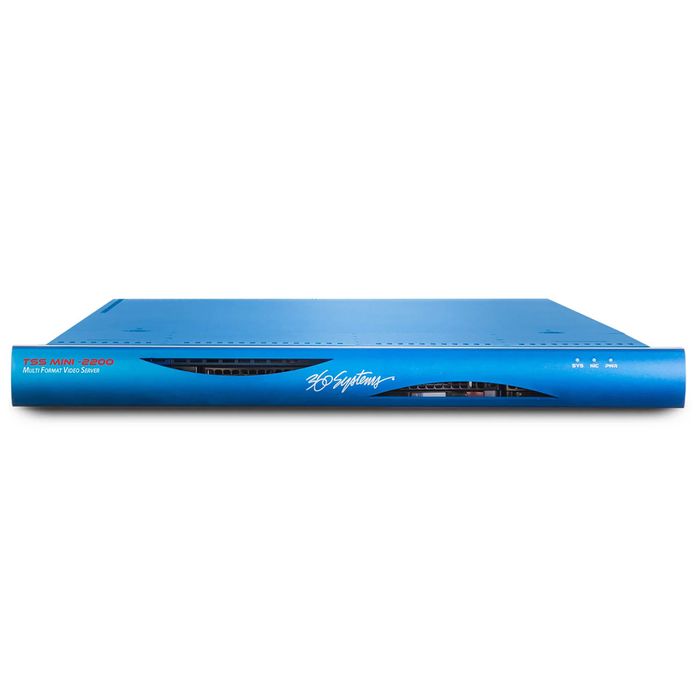

360 Systems TSS-2200 2-Channel HD/SD Server with Remote Workstation
Description
2 Channel SD & HD Compact, up to 8TB of Storage The Reliable, Multi Format Video Server. The TSS - 2200 offers both channels to be either record or playout.
Key Features:
- 2 Channels, 2 Record or Playout
- 1U, Short Chassis Form Factor
- 16 Channels Embedded Audio
- H.264 and MPEG2 Encoding / Decoding
- Automatic Up/Down/Cross Conversion of HD or SD content
- Remote Control From PC’s via Ethernet
- Redundant Power / Cooling
Video
- Record and play in 720p, 1080i or SD on any channel
- Various standard codec and file formats are accepted for playout, such as H.264 or MPEG-2 in .mxf, .mp4, .mpg or .mov containers.
- Independently configure each output to broadcast in 720p, 1080i or SD
- Perform jog and shuttle for rapid movement within a clip
- Smooth slow motion playout
- 16 channels of embedded audio per video channel
- Configurable for 29.97/59.94 or 25/50
- High quality 10 bit video and 24 bit audio support
Reliability
- Redundant cooling and power
- Redundant RAID 5 storage
- Linux based operating system
Connectivity
- HD-SDI, SD-SDI compatibility
- Gigabit Ethernet
- Serial port control for each channel via the VDCP or Odetics protocols for use with automation or remote controls
- Independent GPI inputs and outputs (12 each) for external triggering or control
Software
- Automatic conversion plays SD and HD files back-to-back
- Local software GUI
- Remote control from a PC
- Record & playlisting
TSS Applications
- Budget conscious broadcasters
- Requiring multiple channels
- Broadcast trucks
- Backup systems
- Public broadcasting
- Government meetings
- Education
- Stadiums
- Record and store
- Video insertion
- Production
