RME M-32 DA Pro II AVB + MADI 32-Channel D/A Converter
Description

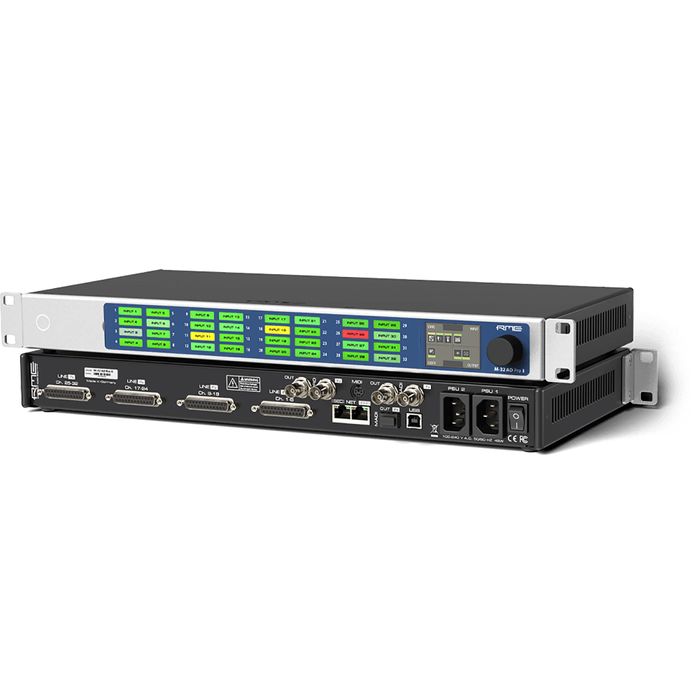

M-32 DA Pro II - High-end 32-Channel 192 kHz AD or DA Converter with MADI and AVB
The M-32 Pro II series is designed to meet the demanding requirements of professional studios, immersive sound installations, live sound systems, and industrial applications that need a reliable solution for analog conversion with high-end network audio processing. These new converters are available with either 32 analog inputs or outputs, and either with Dante® or AVB for a choice of four different models.
Boasting up to 32-channels, fully equipped MADI I/Os (coaxial & optical via optional SPF module), improved specs with extremely low THD values, intelligent channel routing and innovative usability, the brand-new M-32 Pro II Series truly represents the state-of-the art in exceptional audio performance.
Key Features:
- 32 analog outputs; 128 channels of AVB and MADI I/O; word clock I/O and MIDI I/O
- Eclipses the performance of RME's previous generations of converters
- Fully balanced analog circuit design with a 120dB(A) signal-to-noise ratio, astonishingly low latency, and -111dB of THD+N
- Impulse response optimization at sampling rates of 88.2 kHz and higher yields artifact-free conversion
- Operates at various line levels — with full resolution — to accommodate the full gamut of analog hardware
- Outputs 32 analog signals received over a single Ethernet cable
- 2 redundant network ports provide rock-solid reliability
- Tri-color, backlit channel label fields with magnetic cover make identifying channels easy
- Easy-to-read peak/RMS metering
- SyncCheck and ICC detect when a clock source is not in sync and falls back to other available signals
- Security locking and an eye-grabbing dark mode
- Lightning-fast configuration and control over your network (including wirelessly over Wi-Fi)
- JSON-based API and SysEx MIDI commands can be used to integrate the unit anywhere
- Integrating routing matrix permits single-channel routing across all analog and digital I/O
The Ultimate Solution for High-End Network Audio Processing
The latest 32-channel M-32 Pro II is based on state-of-the-art, high-resolution converter components and a fully balanced analog circuit design that offer signal-to-noise ratios of 120 dB(A) with very low latencies — placing the converters in the reference class. While the M-32 AD Pro II offers the same outstanding analog performance as its predecessor, the DA-Converter has even improved the THD+N to -111 dB. All models benefit from impulse response optimization at sampling rates of 88.2 kHz and higher to minimize ringing artifacts in the conversion process.
Plug & play - rapid user interaction
Control all device states directly from the front panel for convenient, direct access to all features. RME AVB devices can be reached over network (including wirelessly over Wi-Fi) and USB for convenient remote access, allowing the rapid creation of gain groups, phantom power switching and clock configuration. In addition, a JSON based API and even SysEx MIDI commands can be used to integrate each model virtually anywhere. The integrated routing matrix allows single channel routing across all analog and digital I/O. As such, problem-solving of signals, clocking, connectivity or other issues is both simple and straight-forward!
