Eventide H9000 Multi-Channel Effects Platform
Description
Eventide’s flagship multi-effects processor, the H9000, continues our unbroken tradition of delivering industry-leading signal processing power to the pro audio community. The culmination of nearly fifty years of R&D, the H9000 comes loaded with over 1600 unique algorithms from recreations of beloved classics to Eventide’s latest and greatest effects. The wealth of included effects will offer users many years of exploration and inspiration.

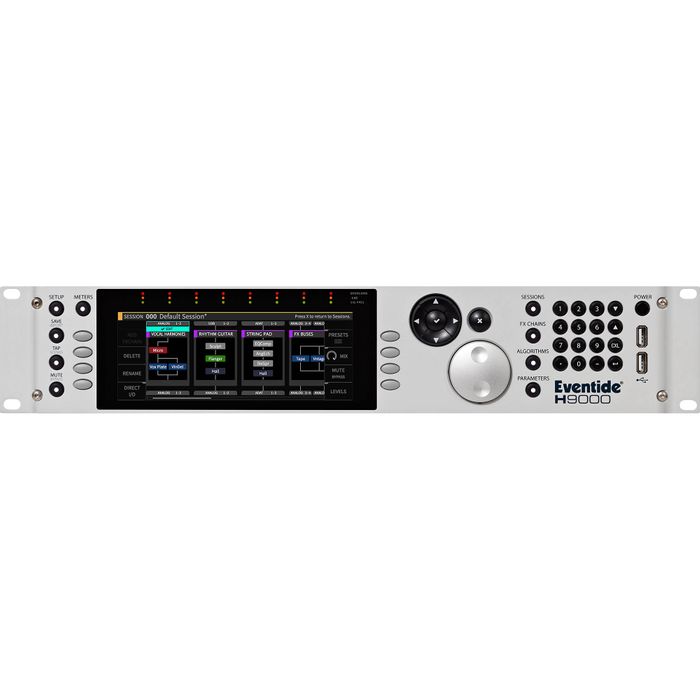

The H9000 is available in two versions, the standard H9000 and the H9000R. The H9000 with full front panel UI. The blank front panel H9000R requires Emote for operating.
Key Features:
- Four quad core ARM processors: 16 DSP engines
- Analog audio I/O: 8 channels
- USB audio: 16 channels
- AES/EBU, ADAT, S/PDIF: Up to 8 channels
- World-class USB audio interface
- Expandable I/O: Three expansion slots for additional audio connectivity, giving you an additional 32 channels per expansion card.
- Hardware Meters: 8 assignable LED meters – front panel version only
- Emote control software app for Mac & PC is available as a standalone app or AAX, VST, AU plug-in
- FX Chains: Innovative approach for setting up and managing complex effects
- Direct I/O: Virtual patchbay lets you route any set of inputs to any set of outputs with the click of a mouse
- Comprehensive Live Controls: MIDI, Expression Pedals, Auxiliary Switches and USB controllers
- Preset portability: Store and recall presets using USB thumb drives
- Network Connectivity via LAN or WiFi
Colossal Audio I/O
With up to 128 channels of simultaneous signal processing and a generous complement of analog and digital audio I/O, the H9000 is the perfect platform for surround sound and for processing many tracks of audio simultaneously. Audio I/O includes 8 channels of pristine analog audio, 16 channels over USB, 8 channels of AES/EBU, ADAT optical, and S/PDIF. Whether you use it live or in a studio, the H9000 gives you plenty of external control options.
- MIDI In, Out and Thru. MIDI Thru allows you to daisy chain MIDI controlled devices.
- 2 1/4" TRS Inputs – Connect up to four foot pedals, or four control voltage sources, or six auxiliary switches, or a combination.
- 4 USB Ports – Two on front, Two on back. Connect USB MIDI controllers, save and restore presets from a USB thumb drive, enable WiFi using the supplied WiFi dongle.
Legendary Sounds, New Paradigms
The H9000 comes loaded with 1600 unique algorithms from the H8000 and the H9 with over 500 presets covering reverb, delay, modulation, pitch shifting, EQs, distortion, and more. Multi-channel algorithms include 5.1 halls, chambers, plates, rooms, booths, and various ambient spaces. Also, the H9000 introduces the concept of FX Chains for connecting any set of four effects with user-defined, flexible routing. FX Chains can be created to act as a channel strip, a guitar pedalboard, a modular synth with effects, etc. The H9000’s FX Chain paradigm is like a custom channel strip taken to the next level, allowing any four algorithms to be combined and routed to taste. FX Chains are invaluable for quickly exploring various combinations of effects to achieve new and inspiring sounds.
