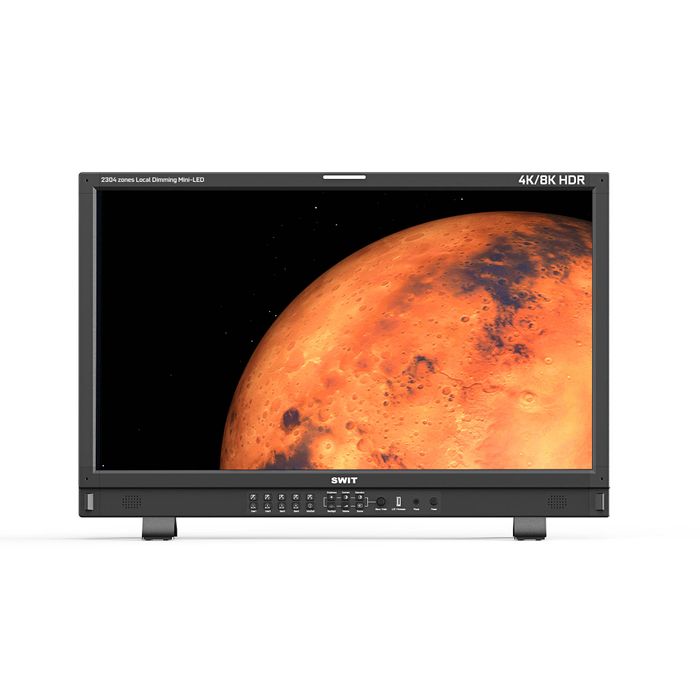

Swit BM-U325MD 31.5-in 4K/8K 1500nit 1,000,000:1 HDR Studio Monitor

POA
Stock Code:
151810
Enquire for ETA

Description

BM-U325MD adopts a 31.5-inch 4K/UHD resolution10-bit Mini-LED panel of 2304 zones local dimming backlight, with 1500nits high bright and 1,000,000:1 high contrast radio for HDR productions. With SWIT unique Mini-LED technology, the panel has solved halo issue and provides full 178° viewing angle.

Multi 4K/8K Interfaces
12GSDI 4-in 4-out, supports:
Single link 4K; Quad link 4K and Quad link 8K HDMI 2.0 (4K60P)
12GSDI via SFP Fiber (Optional)
ST2110 IP via SFP Fiber (Optional)

  • The Quadlink 4K/8K supports both SQD and 2SI;

  • The SFP optical fiber adaptor is optional purchased.


4K/8K UHD Monitor
Supports Single link 4K input including 12GSDI, HDMI2.0 or 12GSDI / ST.2110 via SFP, and Quad link 4x 3GSDI 4K or Quad link 4x 12GSDI 8K inputs with both SQD and 2SI modes.

Quadview, PBP, PIP
You can also input 4x independent 4K inputs for quadview, supports 12G/6G/3G/HD-SDI and HDMI 2.0/1.4/1.3 mixed formats input, and waveform, vector, HDR/SDR gamma selection, color gamut selection, and UMD displays for each input window.
Beside Quadview, you can select any 2 inputs to display Pic-by-Pic or Pic-in-Pic modes for convenient video productions.

Key Features:


  • 31.5-inch 4K/UHD 3840×2160 resolution

  • 2304 zones local dimming MINI-LED

  • 1500nits, 1,000,000:1 contrast HDR

  • 100% DCI-P3 wide color gamut coverage

  • VICO 1.97 A-class Eye Protecting LCD

  • 12GSDI 4-in 4-out, 8K input ready, HDMI2.0 input

  • 12GSDI via SFP Fiber input (Optional)

  • ST2110 IP via SFP Fiber input (Optional)

  • SFP Fiber 12G input converted to 12GSDI out

  • 4 inputs Quadview, any 2 inputs PBP/PIP view

  • HLG/PQ/S-log3 HDR, Payload ID auto setting

  • 3DLUT Auto Self-calibration without PC

  • Audio/Video 0 latency for post production

  • Built-in Multi camera Delog Luts to 709/HLG/PQ

  • User 3DLUTs upload via USB

  • Waveform / Vector / Histogram / Eye pattern

  • Focus assist / False color / Zebra

  • 16-ch audio meters / Lissajous

  • 5.1 & 7.1 surround sound phase pattern

  • IP webserver remote control
