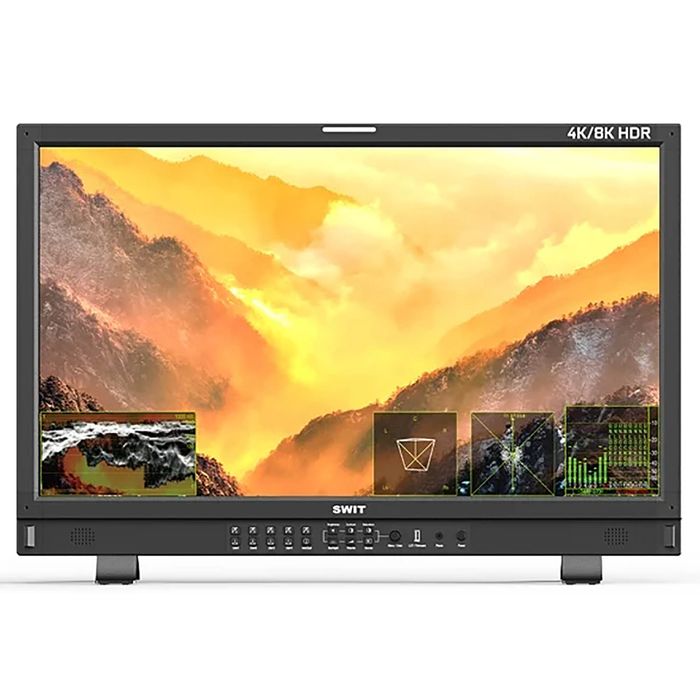

SWIT BM-U325HDR 31.5-in 4K/8K 12GSDI HDR QLED Studio Monitor
Description
BM-U325HDR adopts a 31.5-inch 10-bit QLED (Quantum Dot LED) panel, UHD 3840×2160 resolution, 1000nits high bright LED backlight for HDR display, 1000:1 contrast, 100% DCI-P3 wide color gamut. The viewing angle is Horizontal: 178° / Vertical: 178°.
Multi 4K/8K Interfaces
12GSDI 4-in 4-out, supports:
Single link 4K; Quad link 4K and Quad link 8K HDMI 2.0 (4K60P)
12GSDI via SFP Fiber (Optional)
ST2110 IP via SFP Fiber (Optional)
- The Quadlink 4K/8K supports both SQD and 2SI;
- The SFP optical fiber adaptor is optional purchased
4K/8K UHD Monitor
Supports Single link 4K input including 12GSDI, HDMI2.0 or 12GSDI / ST.2110 via SFP, and Quad link 4x 3GSDI 4K or Quad link 4x 12GSDI 8K inputs with both SQD and 2SI modes.
Quadview, PBP, PIP
You can also input 4x independent 4K inputs for quadview, supports 12G/6G/3G/HD-SDI and HDMI 2.0/1.4/1.3 mixed formats input, and waveform, vector, HDR/SDR gamma selection, color gamut selection, and UMD displays for each input window.
Beside Quadview, you can select any 2 inputs to display Pic-by-Pic or Pic-in-Pic modes for convenient video productions.
Key Features:
- 31.5-inch QLED Panel, 3840×2160 resolution
- 1000nits high bright LED backlight
- 100% DCI-P3 wide color gamut coverage
- VICO 1.97 A-class Eye Protecting LCD
- 12GSDI 4-in 4-out, 8K input ready, HDMI2.0 input
- 12GSDI via SFP Fiber input (Optional)
- ST2110 IP via SFP Fiber input (Optional)
- SFP Fiber 12G input converted to 12GSDI out
- 4 inputs Quadview, any 2 inputs PBP/PIP view
- HLG/PQ/S-log3 HDR, Payload ID auto setting
- 3DLUT Auto Self-calibration without PC
- Audio/Video 0 latency for post production
- Built-in Multi camera Delog Luts to 709/HLG/PQ
- User 3DLUTs upload via USB
- Waveform / Vector / Histogram / Eye pattern
- Focus assist / False color / Zebra
- 16-ch audio meters / Lissajous
- 5.1 & 7.1 surround sound phase pattern
- IP webserver remote control
