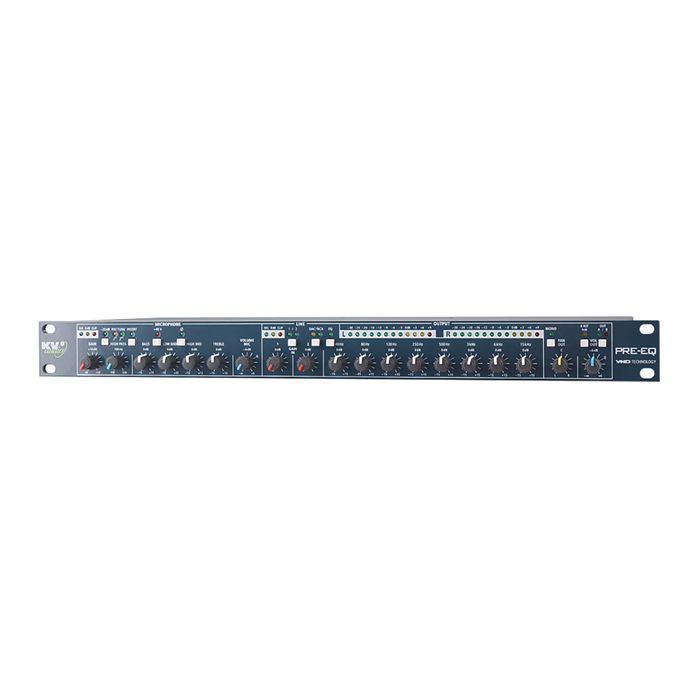

KV2 Audio VHD PRE-EQ Preamp with Built-in Line Drivers
Description
The design of the new VHD PRE-EQ is based on years of experience in presenting KV2 Audio systems using our associated Electronics. The VHD PRE-EQ includes a single microphone input, two stereo line inputs (balanced XLR, RCA / internal DAC) and A/B switchable master outputs. The preamp includes direct summing inputs for combining multiple preamps in mixing applications. The microphone input is equipped with a tuneable or preset HPF, insert, and 4-band EQ. The stereo line inputs are configured with Line input 1 - XLR, Line input 2 - RCA / internal DAC and share a brand new revolutionary George Krampera 8- band EQ. The A/B outputs are equipped with left/right pan, mono summing and master volume. The VHD PRE-EQ is equipped with signal level presence on inputs and meters on outputs. A high quality, high definition USB DAC up to 384KHz/24bit sample rate is included. Great emphasis was placed on maintaining the highest possible sound quality.
Key Features:
- Single microphone input, two stereo line inputs (balanced XLR, RCA / internal DAC)
- A/B switchable master outputs
- Direct summing inputs for combining multiple preamps in mixing applications
- The microphone input is equipped with a tuneable or preset HPF, insert, and 4-band EQ
- The stereo line inputs are configured with Line input 1 - XLR, Line input 2 - RCA / internal DAC and share a brand new revolutionary George Krampera 8- band EQ.
- The A/B outputs are equipped with left/right pan, mono summing and master volume with signal level presence on inputs and meters on outputs
- USB DAC up to 384KHz/24bit sample rate
